Vibro sifter machine , the vibro Sieving machine for screening powder, particle and slurry materials in many industries.
Sieve aperture: 2-500 mesh
Feed granularity: < 10 mm
handling capacity: 1-5T
Application industries:
food, medicine, chemical industry, metallurgy, ceramics, abrasives, etc.

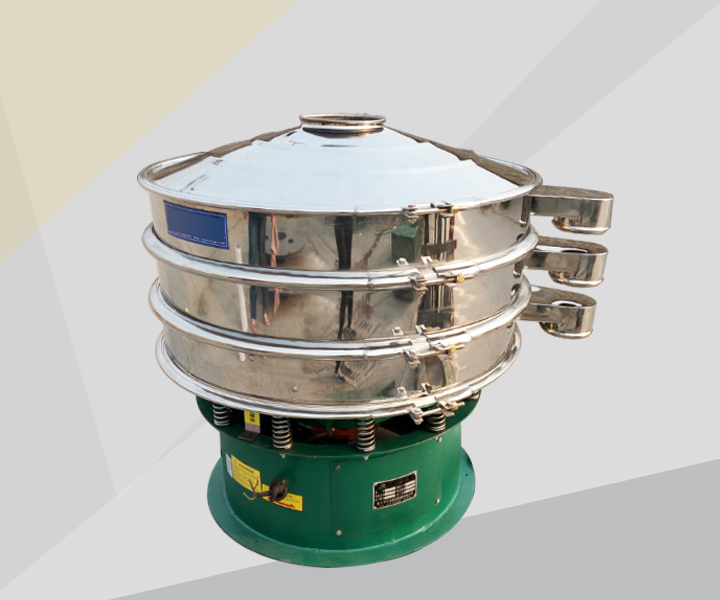

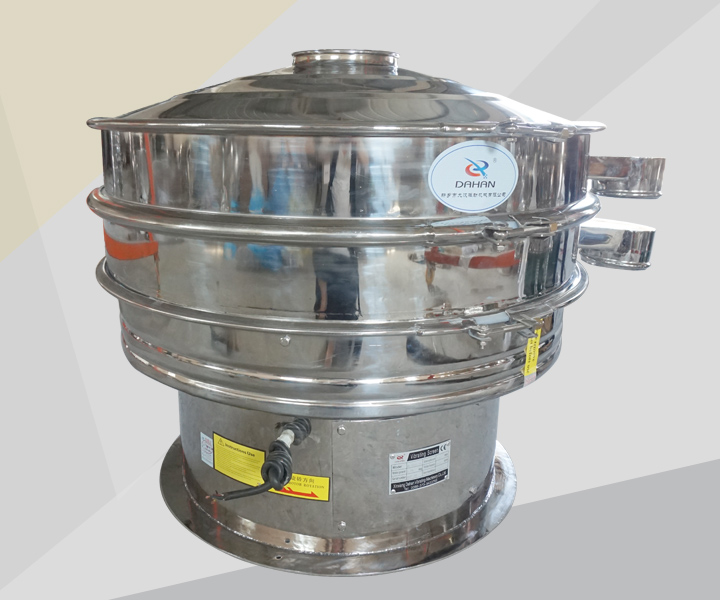

Vibro sifter machine is a Circular vibratory sifting machine, which is designed to perform separation, scalping and grading processes for both dry and wet applications in pharmaceutical, chemical, food and cement industries. We offer an innovative range of such round separator machines that feature enhanced screening capability, lower noise and rugged construction.
Operating and cleaning is quick and easy, making this range of sifting machines perfect for all processing industries. A wide range of sizes and options means the machine can be tailored to suit your exact needs.
1, screening fine to 500 mesh, filtering up to 5 microns;
2. According to the nature of the screening material, the bouncing ball, ultrasonic and other net cleaning devices can be used to solve the problem of blocking the net.
3, 1~5 layers of screen mesh, can simultaneously carry out 2~6 kinds of different particle size specifications of material screening;
4, Fully closed structure, dust is not easy to fly, liquid will not splash.
| Model | Diameter mm | Screen area m2 | Screen specification （mesh） | Feeding granularity mm | Vibration time rpm |
| DH-600 | Φ600 | 0.24 | 2-500 | <Φ10 | 1500 |
| DH-800 | Φ800 | 0.45 | 2-500 | <Φ15 | 1500 |
| DH-1000 | Φ1000 | 0.67 | 2-500 | <Φ20 | 1500 |
| DH-1200 | Φ1200 | 1.0 | 2-500 | <Φ30 | 1500 |
| DH-1500 | Φ1500 | 1.6 | 2-500 | <Φ30 | 1500 |
| DH-1800 | Φ1800 | 2.43 | 2-500 | <Φ30 | 1500 |
| DH-2000 | Φ2000 | 3.01 | 2-500 | <Φ30 | 1500 |
Vibrating screen can be used in various industries of powder, particles, slurry materials in addition to impurity, classification, filtration. Screening materials: starch, soybean milk, soy sauce, monosodium glutamate, tree powder, paint, Chinese medicine powder, electromagnetic materials, plastic particles, washing powder, etc.
Didn't you find an industry that suits you? Don't worry:
We also support the conveyor of powder,particle,mucus, liquid materials in other industries.
