Diameter: 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm
Screen size: 2-500 mesh Capacity: 100-3300kg/h
Layers: 1-5 layers
Material: Stainless Steel 304, 316L, or Carbon Steel
Voltage: Three-phase, 220V/ 380V/ 415V, 50HZ/60HZ (can be customized)
Application:Elimination of foreign matter, separation of different particle sizes in the same product, solid-liquid separation
Warranty: 12 months Certification: CE, ISO
Delivery time: 10-30 days
Payment terms: T/T, L/C, Western Union, Paypal

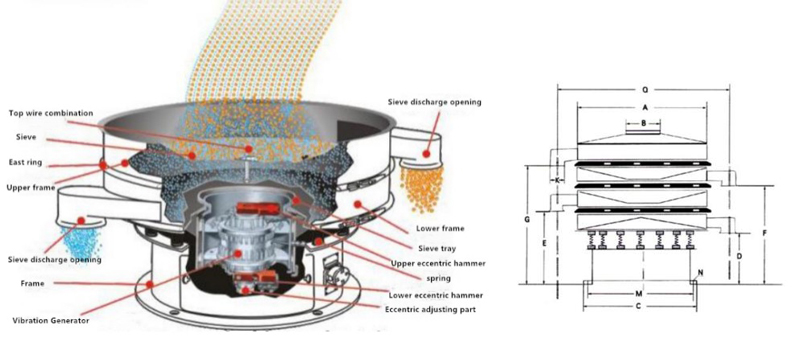

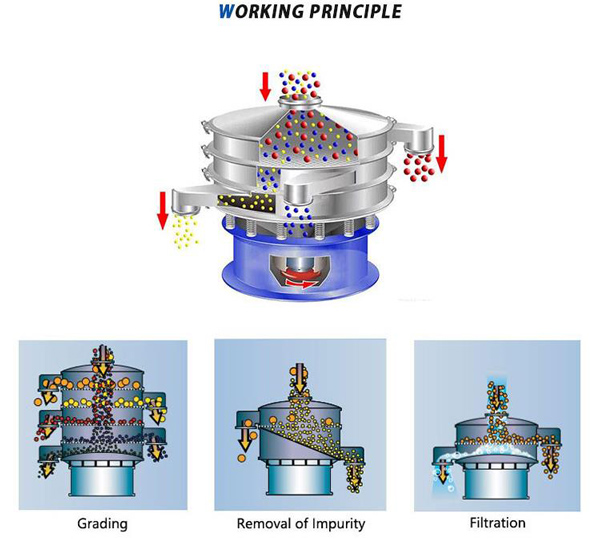

Vibro sifter machine ensures the correct product quality of powders or liquids by removing excessive contamination and consists of a sieve placed on a base plate which is centrally connected to a rotary motor. The material fed through the inlet at the top falls onto the screen. Particles smaller than the mesh size pass through the screen, and particles larger in size are released through the outlet.
The Vibro sifter machine is suitable for high volume production of industrial screening. It can be used in the separation process of solids in liquids, for the separation of different particle sizes in the same product, for safety screening to eliminate foreign matter, for the homogenization of particles, etc.
1. Removal of oversized and contaminants: Used to remove broken or undersized products such as lumps and other contaminants for final quality inspection.
2. Separation of different particle sizes of products: accurately separate particles of different sizes from products, so that the final materials are classified into different sizes. This is usually achieved by passing the product through a grid of up to 5 different aperture sizes.
3. Solid-liquid separation: It can quickly remove insoluble solid substances in various slurries, and can contact slag discharge. Most are single-layered, but multiple layers can also be used.
Improve your product quality - eliminate over-contamination in powders.
Multilayer Separation - You can achieve 6 different gradings in one operation as it can build up to 5 layers.
Ease of Handling - Easy to handle due to automatic discharge of material and customized solutions.
Reduced cleaning downtime - the unit can be easily disassembled without tools. All contact parts are fully washable
Safeguard operator health and safety - closed system eliminates airborne dust problems. Manual interaction is pollution-free.
Vibro sifter is suitable for separating oversized particles and foreign bodies from products, as well as solid-liquid separation of liquids, fineness control of suspended particles, etc. It can be used for screening, grading and solid-liquid separation in the pharmaceutical, chemical, food and metal powder industries.
· Screening plastic pellets
· Separating & de-dusting ground walnuts
· Screening & separating grains
· Screening potato flakes with a bag dump option
· Sifting & screening foundry sand
· Screening & separating rice from bran
· Screening & separating snack food
· Separating bulk solids from solids
· Screening waste oil & grease
· Separating & screening corn kernels
| Model | Diameter (mm) |
Feeding Size (mm) |
Frequency (RPM) |
Layers | Power (kw) |
Capacity (kg/h） |
| DH-400 | 400 | <10 | <1500 | 1-5 | 0.18 | 100 |
| DH-600 | 600 | 0.25 | 200 | |||
| DH-800 | 800 | 0.55 | 500 | |||
| DH-1000 | 1000 | 0.75 | 800 | |||
| DH-1200 | 1200 | 1.1 | 1200 | |||
| DH-1500 | 1500 | 1.5 | 1800 | |||
| DH-1800 | 1800 | 2.2 | 2000 |
Capacities:
| Materials | Working method | Screen(meshes/inch) | Capacity(kg/hour) |
| Milk Powder | dry | 16.20 | 2000 |
| Granulated sugar | dry | 4.20 | 5000 |
| Pesticides | dry | 80 100 150 | 1400 |
| DV Resin | dry | 40 60 80 | 1000 |
| Abrasive powder | dry | 40 60 250 | 1200 |
| Pigment powder | dry | 20 | 4000 |
| Iron Powder | dry | 60 80 120 | 2500 |
| Copper Powder | dry | 80 | 2000 |
| Stone Powder | dry | 40 65 200 | 2000 |
| Aluminum Powder | dry | 60 | 1500 |
| Starch Powder | dry | 80 | 1200 |
| Rare metal Power | dry | 100 150 200 | 1200 |
| Activated carbon | dry | 40 60 | 1000 |
| Coating | wet | 100 | 7500 |
| Slurry | wet | 120 | 6000 |
| Waste water | wet | 20 | 3500 |
| Slurry | wet | 150 | 3500 |
| Fiber | wet | 150 | 6000 |
| Moulding sand | dry | 8 | 10000 |
Sifting Active Pharmaceutical Ingredients
The process involves removing oversized particles from the incoming raw material and removing undersized particles after granulation.
Sieving Molybdenum Powder
Ideal for inspection and screening of molybdenum powder, the ultrasonic deblinding system provides a fully automatic solution for mesh blindness to increase productivity while preventing mesh damage.
