Ultrasonic vibratory sieve machine uses acoustically developed transducers, the ultrasonic system applies high frequency vibration to the screen mesh, preventing oversized and undersized particles from clogging or clogging the mesh screen.
Mesh size: 100—635 mesh
Vibration frequency: 36,000 times/second
Capacity: 1-5 tons/hour
Application: Various ultrafine powders, such as 400 mesh, 500 mesh, 600 mesh flour, coffee powder, alloy powder, molybdenum powder, stainless steel powder, iron powder, quartz powder, lithium battery cathode material, anode material, carbon powder, spore powder Wait.
Ultrasonic vibratory sieve machine uses ultrasonic frequency to vibrate the sieve so that the mesh does not get clogged and it is easier to screen the powder, the system increases the sieving capacity by 10 times and increases the productivity while allowing the separation accuracy down to 20m (#635 item).
The ultrasonic system can effectively solve the fine powder materials with strong adsorption force, easy agglomeration, certain viscosity and high static electricity. The screening accuracy can be increased by 1-70% compared with the ordinary vibratory sieve machine, and the output can be increased by 0.5-10 times. 2-10 times the machine.

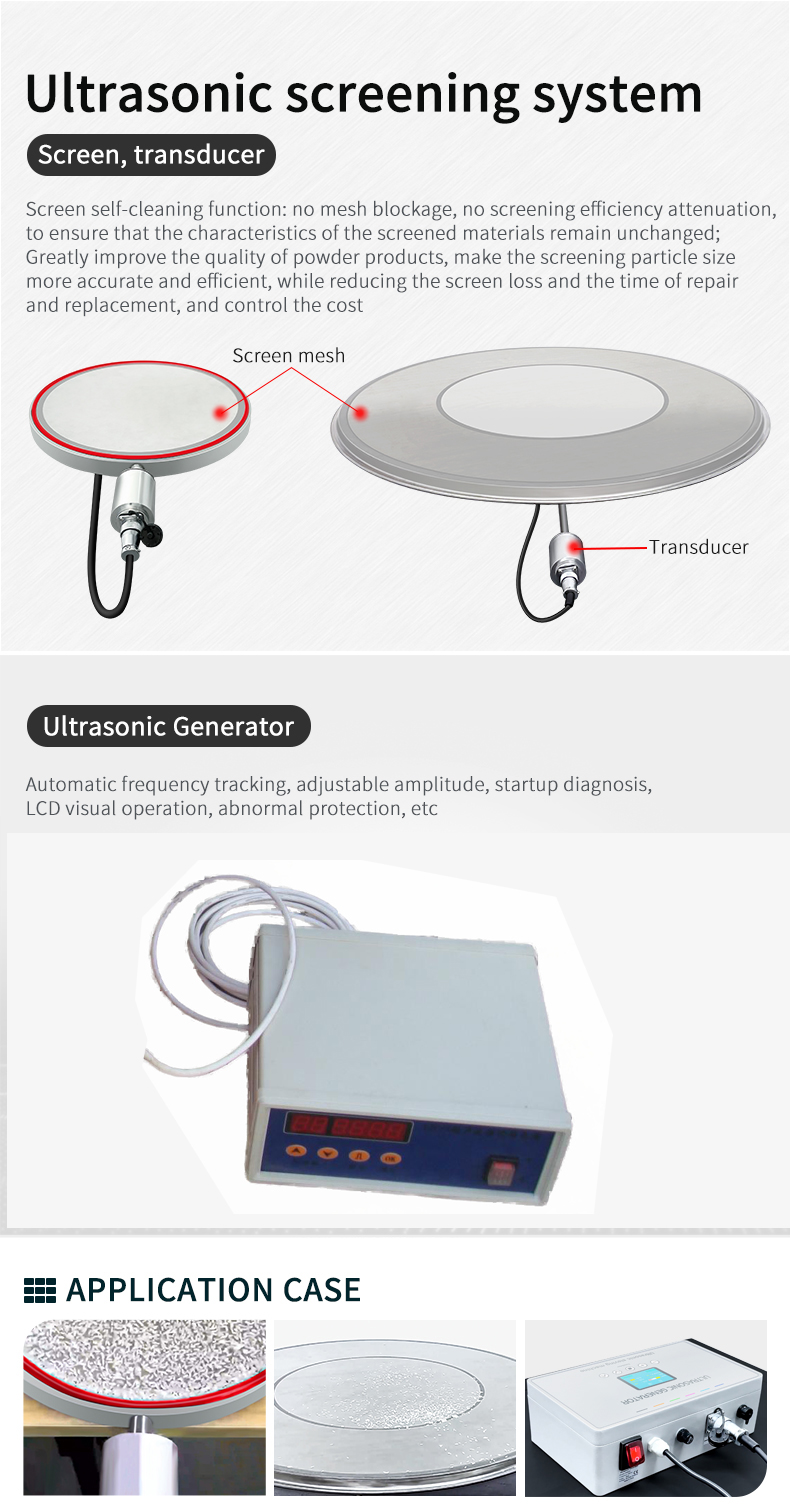

The system consists of an ultrasonic generator, a transducer and a frame, the ultrasonic probe is mounted on the ultrasonic frame, the ultrasonic generator generates high-frequency vibration, and the ultrasonic transducer transmits the vibration to the screen, thereby eliminating blinding and maximizing capacity.
Ultrasonic generator – The ultrasonic generator for the vibrating sieve can either be UF08 or GTS30. Its specifications are as follows:
Power: 220V, 50/60Hz, Single-Phase
Power Consumption: 1A (Max.)
Output Frequency: 36KHz
Operating Mode: Continuous Mode / Pulse Mode
Box Dimension (WxHxD): 165 x 230 x 400mm
Transducer – The transducer has a stainless steel SS304 casing and has above screen position.
Resonance ring or conduction ring
Ultrasonic vibratory sieve machine can input 220V, 50Hz or 110V, 60Hz electric energy into ultrasonic transducer, convert it into 36KHz mechanical vibration, the generated ultrasonic wave makes the screen vibrate at high frequency, the vibration frequency can reach 36000 times per second, It can make the fine powder material form a micro-suspended state on the screen, and can pass through the screen faster without generating static electricity and sticking to the screen, and at the same time achieving the effect of screening and cleaning the screen.

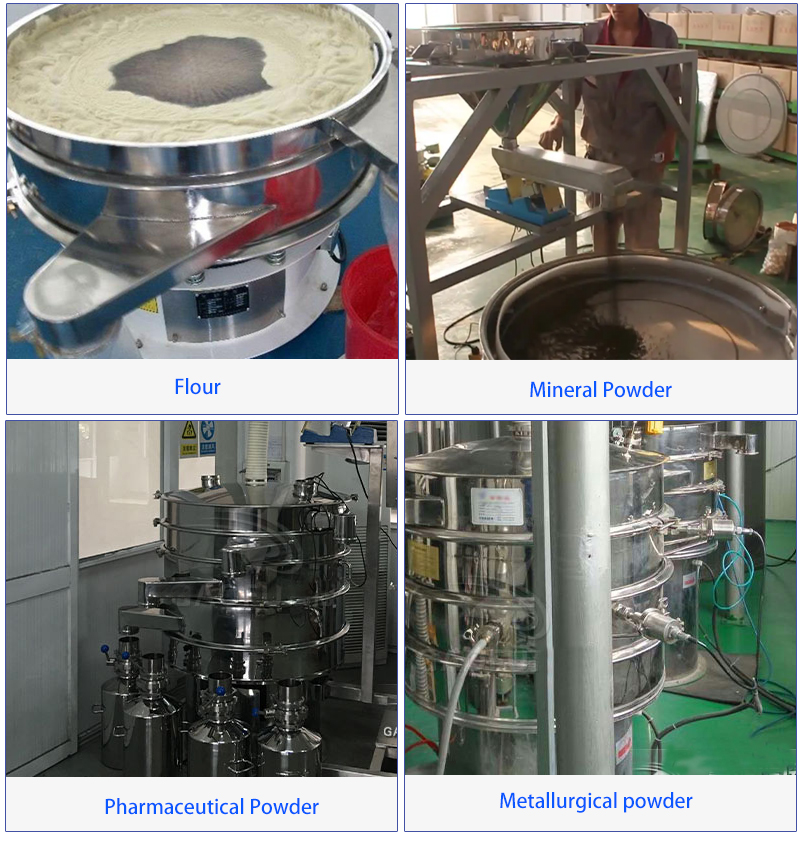

Ultrasonic vibratory sieve machine solves the problem of strong adsorption, static electricity, strong viscosity and high density, and solves the problem of ultrafine powder sieving. At present, it has been widely used in the screening of fine powders such as flour, graphite powder, rubber powder, quartz sand powder, metal powder, powder coating and phosphor powder.
1. The ultrasonic system is installed, and the frequency band output by the numerical control power supply is transmitted to the screen surface 360,000 times/min through the transducer, which eliminates the phenomenon of screen blockage during the screening process.
2. It can sieve 25µm powder and 10µm liquid to ensure that the properties of the sieved materials remain unchanged.
3. The screening accuracy can be increased by 1-70% compared with the ordinary vibrating screen, and the output can be increased by 0.5-10 times.
4. There is no need for rubber balls to clean the net to prevent re-contamination caused by rubber wear.
5. It can be used in single-layer and multi-layer, and a set of intelligent ultrasonic generator uses three transducers at the same time.
6. Ultrasonic adopts integrated circuit board, fully enclosed, aviation-specific interface, can work 12-24 hours uninterrupted, without cooling and cooling treatment.
7. Adhesive screen fixed mesh frame, no pollution, no dead angle, uniform force, easy to replace.
8. Separate structure, with resonance ring, good effect and long screen life.

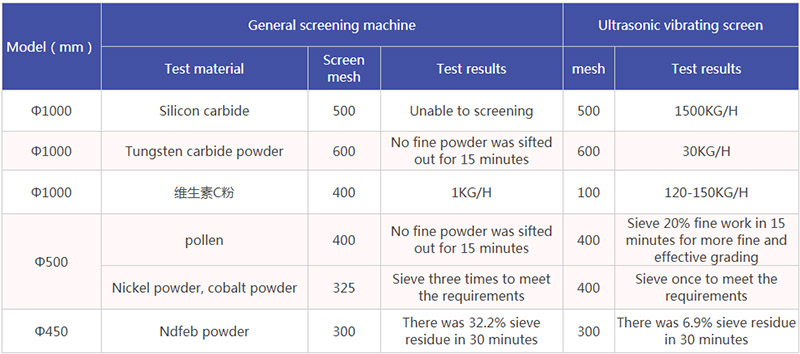

Ultrasonic Vibratory Sieve Machine VS Ordinary Vibratory Sieve Machine
