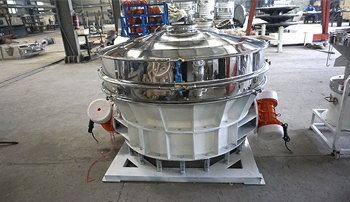

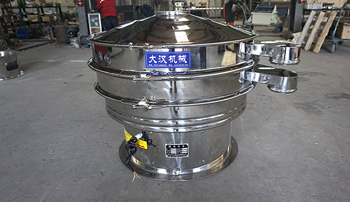

Powder sieving machine is used to safely remove contaminants and agglomerates from powders, the fully enclosed unit prevents dust and fumes from leaking, and thanks to its compact design, this sieving machine can be easily installed in tight spaces.
Diameter: 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm
Screen size: 2-500 mesh
Capacity: 100-3300kg/h
Layers: 1-5 layers
Material: Stainless Steel 304, 316L, or Carbon Steel
Application materials: flour, pharmaceutical powder, chemical powder, metal powder and other powders
Powder sieving machine is used to check and sieve powder, which can remove all oversized contaminants, agglomerates in powder, and can also accurately classify powder according to particle size. It is a popular choice in food powder and pharmaceutical powder industries, and can be easily integrated into your in the powder production line. Designed for high capacity sieving of powders and liquids to remove oversize, these screens enable high throughput rates and are available in different sizes from 400mm to 2000mm to suit your production requirements.
Powder sieving machine can be applied in production lines of flour, washing powder, rice powder, graphite powder, metal powder, etc. The compact size meets industrial and commercial needs with minimal headroom and floor space, and can comfortably fit into any production line.
<
Sifting flour is one of the most necessary and basic steps. Sieving the powder before use can separate the powder particles from each other, fill the particles with air, increase the overall bulkiness of the powder, and reduce agglomeration.
Powder sieving machine sieves products by using customized layered sieve and 3D motion, it can be used to sieve dry powder, it can eliminate foreign matter in powder, through continuous filtration, up to 5 grades of product separation can be performed with only 1 operation.
| Name | Material Properties |
| Wood powder | Light specific gravity, fluffy material, easy to agglomerate |
| Lithium battery material | It has good electrical conductivity and anti-classic performance, light weight, poor material fluidity, high viscosity and low output |
| Pharmaceutical powder | Light specific gravity, easy to agglomerate, easy to adhere |
| Epoxy resin powder | Thermoset powder coatings with corrosion resistance and toughness |
| Sulfur powder | Flammable, sterilizing, laxative. The fineness is 200 mesh, 325 mesh, 400 mesh and 500 mesh etc. |
| Graphite powder | Adsorption, easy caking, strong viscosity, high static electricity, etc. |
| Paint powder | Sticky and light, it will aggregate into particles and sometimes turn into dust, wasting raw materials and polluting the environment |
Powder sieving machine is a powder processing solution for food, chemical and pharmaceutical companies. Our high-performance sieving machines ensure high-quality and reliable processing of various powders. Dahan Machinery's powder processing screening equipment and powder screening equipment are available in a variety of standard models and custom-designed models, which can be designed according to your specific requirements.

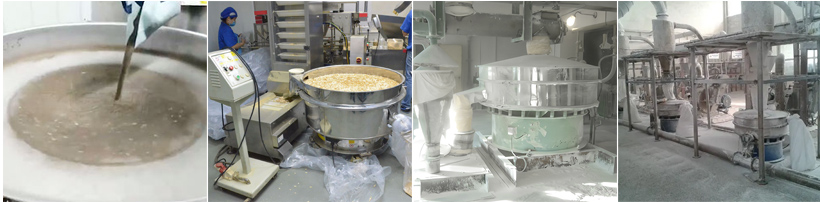

Powder sieving machines are used to safely remove contaminants and agglomerates from powders and can be installed below bulk silos for safe sieving of powders or pneumatically conveyed from tanker or rail car receiving operations for post-delivery delivery Checks incoming and can also be installed in bakeries and food processing plants of all sizes.

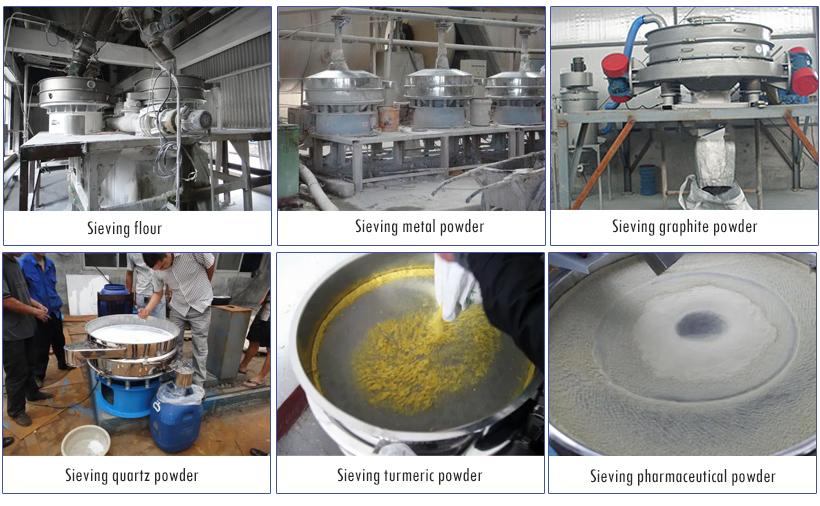

Typical applications: flour, milk powder, glutinous rice flour, soybean protein powder, corn starch, pharmaceutical powder, aluminum powder, lead powder, electrolytic copper powder, electromagnetic powder, rubber powder, resin powder, metal powder, etc.
| Materials | Proportion | Mesh | Model | Throughput (kg/hr t/hr) |
Materials | Proportion | Mesh | Model | Throughput (kg/hr t/hr) |
| Wheat starch | 1 | 250 | DH-1200-1S | 3200 t | Graphite powder | 1.2 | 16/40/80 | DH-1000-3S | 1400㎏ |
| Flour | 0.6 | 24 | DH-1000-1S | 1500㎏ | Lead powder | 11.34 | 10/80 | DH-1000-2S | 1000㎏ |
| Rice flour | 0.5 0.8 | 100 | DH-1000-1S | 300 ㎏ | Tungsten carbide powder | 7.5-9.0 | 20-60 | DH-800-2S | 400㎏ |
| Pollen | 0.4 | 12 | DH-1500-1S | 100㎏ | Gold copper powder | 2 | 100 | DH-800-1S | 70㎏ |
| Glucose powder | 0.8 | 20 | DH-1200-1S | 2000 kg | Iron powder | 3 | 400 | DH-800-1S | 230㎏ |
| Skim milk powder | 0.57-0.7 | 24 | DH-1200-1S | 3000㎏ | Tungsten carbide powder | 7.5-9.0 | 20-60 | DH-800-2S | 400㎏ |
| Whole milk powder | 0.57-0.8 | 12 | DH-1000-1S | 1600㎏ | Gold copper powder | 2 | 100 | DH-800-1S | 70㎏ |
| Powdered sugar | 0.5-0.8 | 100 | DH-800-1S | 200㎏ | Brass powder | 1.5 | 100/200/325 | DH-800-3S | 130㎏ |
| Corn starch | 0.6 | 40 | DH-1000-1S | 1600㎏ | Aluminum powder | 0.9/1.2 | 80/120 | DH-800-2S | 350㎏ |
| Pharmaceutical powder | 0.8 | 80 | DH-800-1S | 550㎏ | Electrode powder | 0.95 | 20/200 | DH-1000-2S | 550㎏ |
1. The mesh size is as fine as 500 mesh (28 microns), and the filtration is as fine as 5 microns, which can realize screening and filtration.
2. All feeding materials are automatically unloaded, and there is no material stored in the machine. The sieve surface and the sieve surface machine have a larger capacity than other types of sieve surface machines, and the processing capacity can reach 100-3300kg per hour.
3. Three-dimensional vibrating motor, designed with automatic cleaning and anti-blocking device (bouncer, drum brush, ultrasonic cleaning device is optional), to reduce the chance of blocking the screen.
4. You can choose to install 1-5 layers of screens, which can sort or filter 2-6 products of different specifications at the same time.
5. A variety of screen structures can be used according to different needs, and the time for replacing a screen is shortened to 3-5 minutes.
| Model | Diameter (mm) |
Feeding Size (mm) |
Frequency (RPM) |
Layers | Power (kw) |
Capacity (kg/h） |
| DH-400 | 400 | <10 | <1500 | 1-5 | 0.18 | 100 |
| DH-600 | 600 | 0.25 | 200 | |||
| DH-800 | 800 | 0.55 | 500 | |||
| DH-1000 | 1000 | 0.75 | 800 | |||
| DH-1200 | 1200 | 1.1 | 1200 | |||
| DH-1500 | 1500 | 1.5 | 1800 | |||
| DH-1800 | 1800 | 2.2 | 2000 |

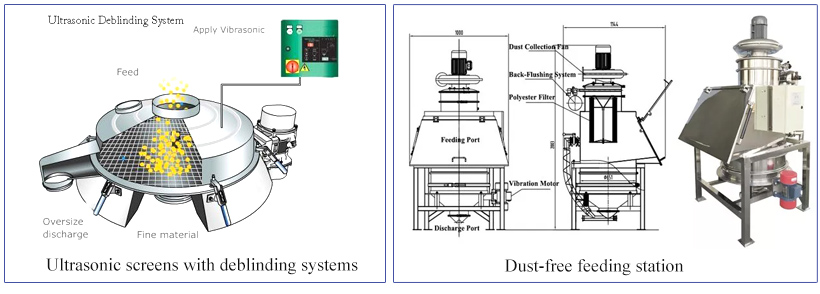

We understand the unique requirements of different industries and materials, so we have designed a series of products that can be easily adapted to your needs, we provide ultrasonic screens with deblinding systems, dust-free feeding stations that can solve powder contamination, specially designed to solve powder screening the problem.

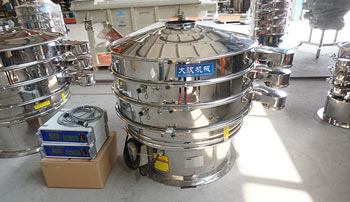

1. Ultrasonic screens with deblinding systems
Materials such as metal and pharmaceutical powders are easy to stick to the meshes during sieving, resulting in accumulation, thereby reducing product quality and sieving output. Dahan Machinery's ultrasonic deblinding system can sieve powders on a screen as low as 20 microns without any problem. Can cause clogging, reduce the time to clean the grid, and increase the screening output by 10 times.
| Model | Test Material | Mesh Size | Vibrating Sieve | Ultrasonic Vibrating Sieve |
| 1000 | Silicon carbide | 500 mesh | Cannot be sieved | 1500kg/h |
| 1000 | Tungsten powder | 600 mesh | 15 minutes without sifting out fine powder | 30kg/h |
| 1000 | Vitamin C powder | 100 mesh | 1kg/h | 120-150kg/h |
| 600 | Pollen | 400 mesh | 15 minutes without sifting out fine powder | 15 minutes sieve |
| 1000 | Cobalt powder | 400 mesh | 10kg/h | 300kg/h |
| 1000 | NdFeB powder | 300 mesh | 32.2% sieve residue in 30 minutes | 6.9% sieve residue in 30 minutes |
| ⌀1000 | Gold steel sand powder | 300 mesh | Cannot be sieved | 1300kg/h |
| 1200 | Antimony trioxide | 80 mesh | 700kg/h | 2000kg/h |
2. Dust-free feeding station
Ensure the quality of your ingredients by removing oversized contaminants, be able to unload and inspect small or oversized bags of powder in one simple dust-free operation, connect to a dust extraction system, and protect operator health and safety.
As the name implies, fine powder is a fine powder material with a high mesh number. This type of material has the characteristics of high mesh number, easy to spill, light specific gravity, and easy to block the net. Therefore, it is necessary to pay attention to the production of fine powder vibrating screens. which ones? The following points are sorted out for reference.
1. Pay attention to dust spillage
Due to the light specific gravity of some fine powders, there will be problems of dust spillage during production, and the danger of dust spillage is known to everyone. If the dust density reaches a certain concentration in a certain range, it will cause an explosion! Even if the dust concentration does not reach the explosion point, it will cause hygienic problems in the production environment and the health of employees! Therefore, in the screening process of fine powder, the equipment needs to be sealed. If conditions permit, dust-free feeding stations and vacuum feeding machines can be used to seamlessly connect from feeding to finished products to achieve clean and safe production effects.
2. Pay attention to the broken screen
The production of fine powder usually requires high precision, and the screen is the component that carries the material. During the long-term operation of the equipment, due to the heavy impact and tension of the material, the screen will be loose and damaged. Once the screen is loose or damaged, the screening accuracy will be insufficient and the product effect will be affected.
3. Protection of vibration motor
The motor is the power source of the vibrating screen equipment, and the motor used in the fine powder vibrating screen needs to be dust-proof and explosion-proof, which is related to the first precaution.
