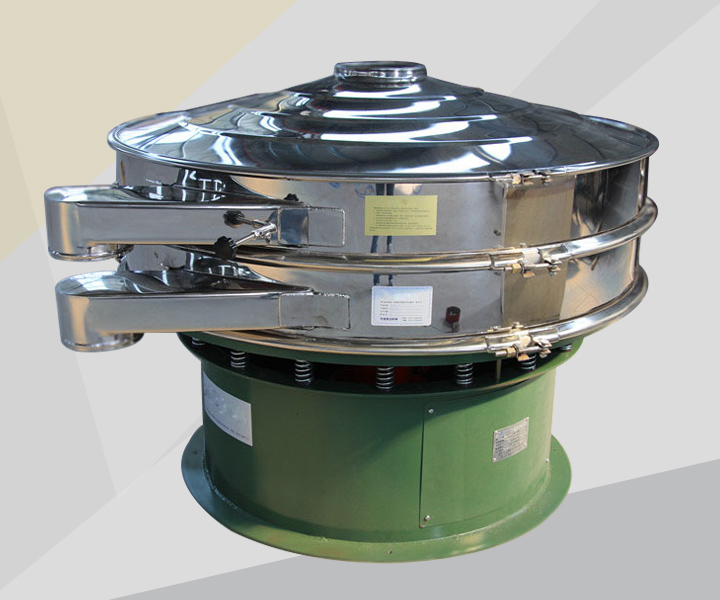

Powder sieve is used to screen out oversized agglomerates and foreign matter from powders as an effective means of protecting ingredients and final products from contamination and agglomeration.
Mesh size: 0-500 mesh
Capacity: 100-5000kg/h
Layer(s): 1-5 (Recommended 3)
Application: Food powder, pharmaceutical powder, metal powder, metallurgical powder, coating powder, chemical powder, etc.
Powder sieve can screen, dedust and classify all kinds of powders, eliminating any unwanted foreign matter such as solid particles, fines or agglomerates, we can provide a wide range of sieve machines in single or multi-layer configuration for batch or continuous processing.
Powder sieve adopts sealed agglomeration to prevent material contamination and protect the operator from excessive inhalation of powder when the powder fluctuates. It is widely used in food powder, pharmaceutical powder, chemical powder, metallurgical powder, metal powder, powder coating and other industries.
Dahan powder sieve is available in a variety of standard and custom designed models that can be designed to your specific requirements.

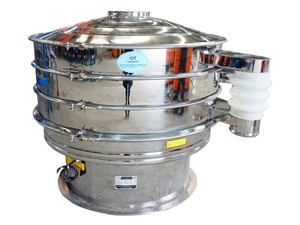

Vibro Sifter
Widely used in the powder processing industry as an effective method of protecting ingredients and final products from contamination and agglomeration.
Mesh size: 2-500 mesh
Capacity: 100-3300kg/h

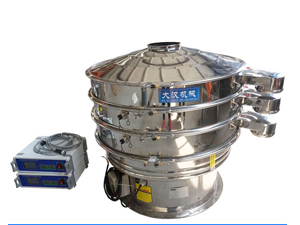

Ultrasonic Vibratory Sieve Machine
Prevents sieve clogging when sieving difficult ultra-fine powders, it can sieve on finer meshes (down to 20 microns).
Mesh size: 80-600 mesh
Capacity: 1-5 tons/hour

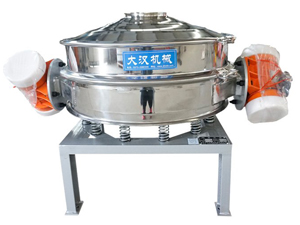

Direct Discharge Sifter
It is mainly used to remove powder agglomeration, foreign matter and pollutants. Usually, the impurity content is about 5%. It is very suitable for screening powder in large quantities. The inlet and outlet are in the same vertical direction, and the sieve is fast. times.
Mesh size: 140 mesh
Capacity: 3-30 tons/hour
1. The material of SUS304 or 316L stainless steel is selected, and it is mirror polished. The inner and outer surface finish is 0.1-0.2RA, which is not easy to prevent and prevent the product from being polluted.

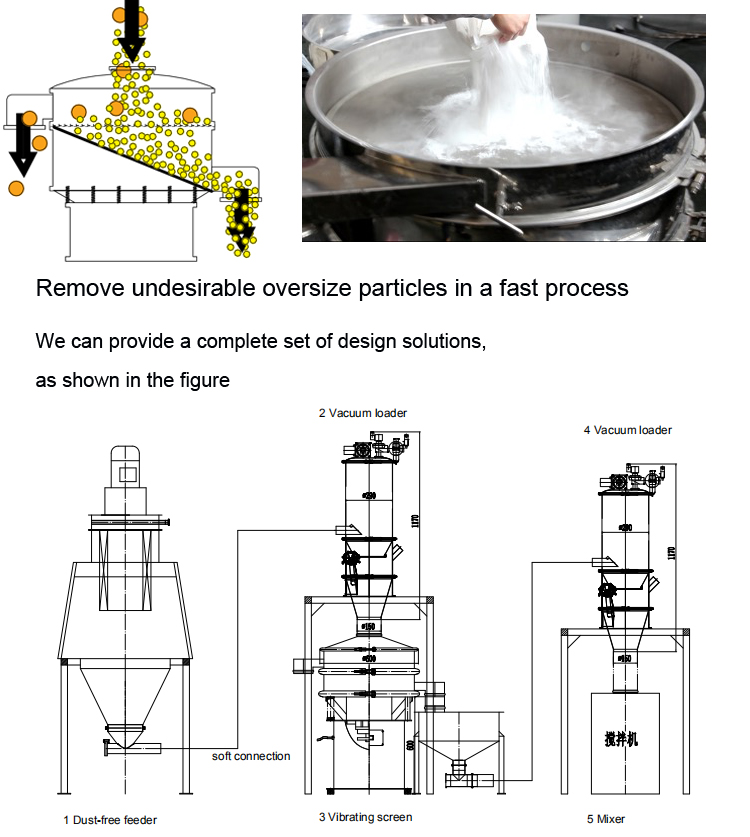

2. The product is poured into the powder sieve, and before the powder passes through the sieve to the rest of the production line, impurities and oversized pollutants are removed to ensure the safety, hygiene and quality of the final product.
3. The fully enclosed structure avoids flying powder, eliminates the problem of dust in the air, and manual interaction is pollution-free.
4. The machine can be quickly disassembled without any tools and is easy to clean, thus increasing productivity and avoiding any chance of cross-contamination between batches.
5. Compact size meets industrial and commercial needs with minimal headroom and floor space, and fits comfortably on any production line.
| Model | Diameter (mm) |
Feeding Size (mm) |
Frequency (RPM) |
Layers | Power (kw) |
Capacity (kg/h） |
| DH-400 | 400 | <10 | <1500 | 1-5 | 0.18 | 100 |
| DH-600 | 600 | 0.25 | 200 | |||
| DH-800 | 800 | 0.55 | 500 | |||
| DH-1000 | 1000 | 0.75 | 800 | |||
| DH-1200 | 1200 | 1.1 | 1200 | |||
| DH-1500 | 1500 | 1.5 | 1800 | |||
| DH-1800 | 1800 | 2.2 | 2000 |

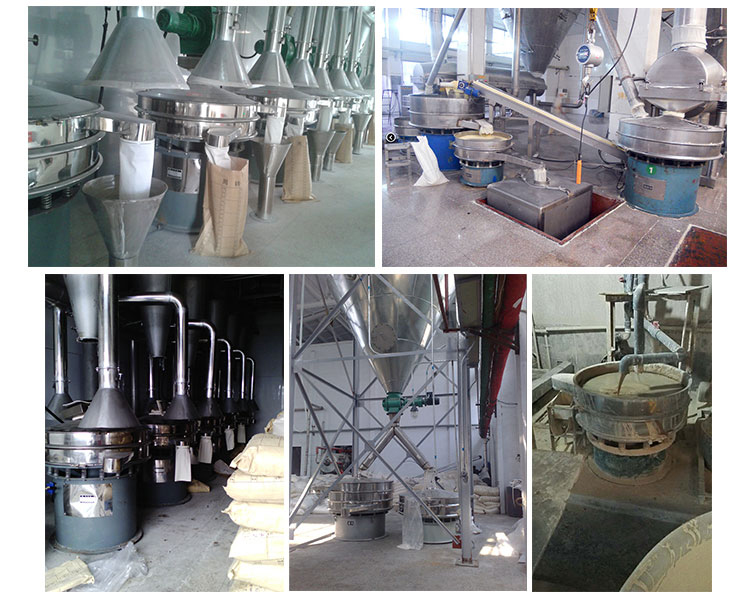

Chemical Industry
Food &Beverage Industry
Pharmaceutical Industry
Metallurgy & Metal Powders Industry
Pharmaceuticals Industry
Grain Industry
Papermaking & Wastewater treatment Industry
Didn't you find an industry that suits you? Don't worry:
We also support the conveyor of powder,particle,mucus, liquid materials in other industries.
