Plastic vibrating sieve is made of polypropylene PP, which is resistant to oxidation, strong acid and strong alkali corrosion, and ensures that the material will not deteriorate during the screening process. It is mainly used to meet the screening operations of acid-base and corrosive materials.
Diameter: 600-2000mm
Screen size: 2-500 mesh
Capacity: 100-2000 kg/h
Application: fluorescent powder, iron powder, copper sulfate, chemical raw materials, disinfectant, aluminum chloride and other strong acid and alkali materials
Plastic vibrating sieve is made of polypropylene material (PP material) through special processing technology. It is used for screening operations of acid-base and corrosive materials. It can solve the problem of special materials after contact with Q235 ordinary carbon steel and SUS304 stainless steel. Oxidation, corrosion and other problems.
It is mainly to solve the problem of chemical reaction between screening materials and metals. The polypropylene plastic vibrating screen is made of non-metallic materials from the screen frame, screen and net cleaning device. It can withstand acid, alkali and salt solution below 80 °C. And corrosion of various organic solvents, long service life.
1. The sieve machine is made of polypropylene pp material, which has good corrosion resistance. It can screen acid-base and strong alkaline materials, effectively solve the oxidation, so that the materials will not deteriorate during the screening process, and the screening effect of the materials will not be affected.
2. Due to the use of polypropylene material, the raw material of this material is non-toxic, colorless and tasteless, and its use will not cause any harm to human body functions.
3. The polypropylene material is relatively durable and will not be severely worn by the vibration of the vibrating machine. At the same time, because the plastic vibrating screen is resistant to corrosion, high temperature, and strong alkali corrosion, it has high rigidity and tensile strength, and antioxidants can be added to prevent vibration. The screen is aging and has a longer service life than ordinary vibrating screens.
4. It can sieve powder and particles, and can also filter liquid. The filtration capacity can be as high as 20m³/h, and the screening capacity can reach 100-2000 kg/h.
5. The bouncing ball cleaning device can continuously impact the screen through frequency vibration, so that the material can pass through the screen smoothly without blocking the screen, and the screening efficiency is high.

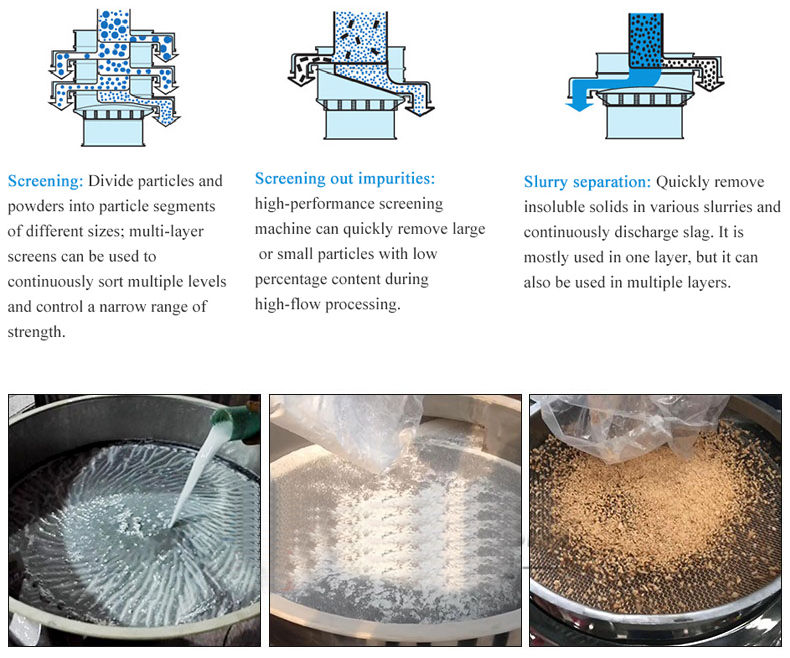

Plastic vibrating sieve is suitable for many industries, such as food industry, pharmaceutical industry, chemical industry, etc. It can solve the problem of screening strong acid and strong alkaline materials.Its main functions are as follows:
1. Classification: Use one plastic vibrating screen to continuously and accurately divide the product into multiple layers and use it once to separate and screen six groups of products with different particle sizes without inconsistent particle size ratios.
2. Solid-liquid separation: This equipment is used in single-layer or multi-layer, which can effectively process solid and liquid mixed materials, quickly realize solid-liquid separation, and filter out different target materials.
3. Removal of impurities: This equipment can quickly separate a large number of materials and remove small parts of different sizes.
| model | Sieve diameter（mm） | power（kw） | Screen mesh size | voltage（v） | layer number |
| SLS-400 | 350 | 0.18 | 2-500 mesh | 380 | 1-5 layers |
| SLS-600 | 550 | 0.25 | |||
| SLS-800 | 750 | 0.55 | |||
| SLS-1000 | 920 | 0.75 | |||
| SLS-1200 | 1120 | 1.1 | |||
| SLS-1500 | 1420 | 1.5 | |||
| SLS-1800 | 1720 | 2.2 |

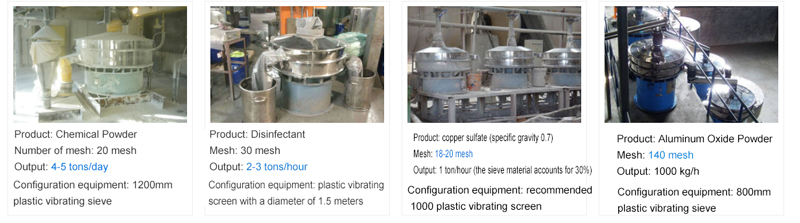

| Materials | Proportion | Mesh | Model | Processing Method | Capacity (kg/hr T/hr) |
| Spray soil particles | 2 | 10 | SLS-1000-1S | Dry | 18000㎏ |
| Mica | 0.8 | 200 | SLS-800-1S | 110㎏ | |
| Feldspar | 2.5 | 60/100 | SLS-1000-2S | 350㎏ | |
| Quicklime | 2.5 | 100 | SLS-1000-1S | 480㎏ | |
| Waste water | 1-1.3 | 60 | SLS-1000-1S | Wet | 15000T |
| Dyeing and steaming wastewater | 1 | 150 | SLS-1000-1S | Wet | 22000T |
| Waste oil | 0.9 | 100 | SLS-1000-1S | Wet | 3800T1 |
