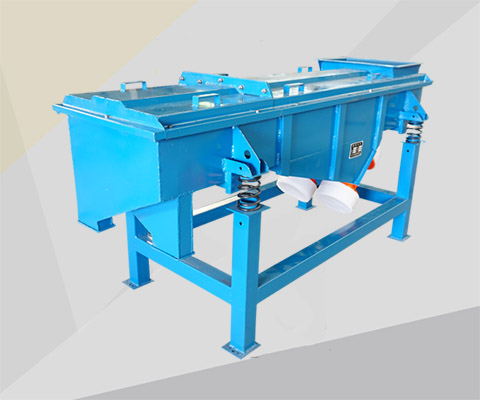

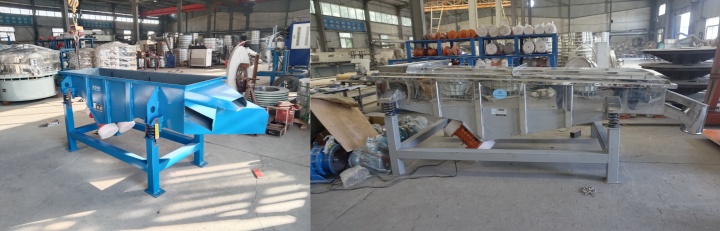

Linear vibrating screen

Prodcut Description

Linear vibrating screen using two vibration motor as vibration source, when the longitudinal installed on the screen body of two relative rotation of the vibrating motor, eccentric block occurs at the ends of the two vibrating motors rated exciting force, resulting in transverse vibration force cancel each other out, the longitudinal vibration force passed to the entire screen by the vibration body, make the material being thrown up on the screen, at the same time to the port of discharge for jumping movement. Less than the mesh material through the mesh material through the mesh hole and fall to the lower layer, after a continuous jump out of the discharge port.

Related Videos

Features

1. Easy to operate and maintain.

2. Less consumption, high output and low cost.

3. Fully enclosed structure, automatic layout, more suitable for pipeline operation

4. Good sealing, no dust flying.

5. Can be used for single or multi-layer.

6. Automatic material discharging, continuous operation.

7. Each part of the screen box is welded together with copper plate and profile.

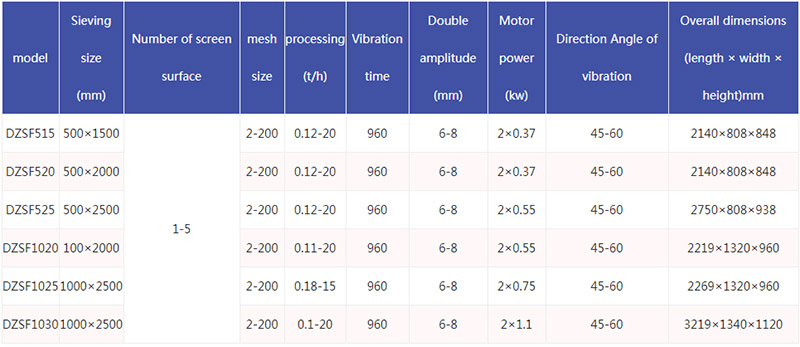

Technical parameters

Application

Linear vibrating screens are widely used in many industrial fields. They are used for screening, grading and filtering granular materials, improving production efficiency and ensuring product quality. They are powerful and versatile screening equipment.

Common application scenarios include but are not limited to:

Mining and mining industry: used for screening and grading of ore particles such as coal, ore, limestone, and metal ore.

Building materials industry: used for screening and classification of building materials such as cement, sandstone, concrete, and bricks.

Chemical industry: used for screening and grading of fertilizers, plastic particles, resins, pigments, granular materials, etc.

Food processing industry: used for screening of food raw materials, such as flour, powdered sugar, rice flour, etc.

Pharmaceutical industry: used for screening and grading of medicinal powder and Chinese herbal medicine particles.

Agricultural field: used for screening of agricultural products, such as grains and seeds.

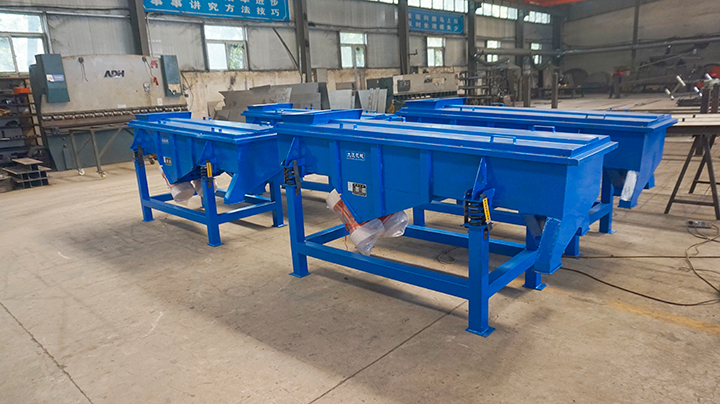

Linear vibrating screen for sale

Different types of linear vibrating screens may differ in material, model, and mesh size, which are usually selected based on specific application requirements and particle material characteristics. The following are some common possible features of linear vibrating screens:

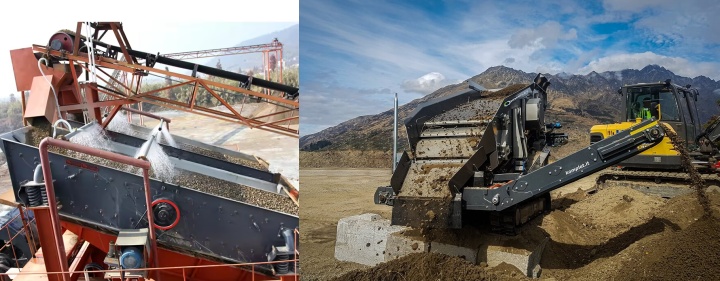

Type 1: Mining vibrating screen

Material: Usually made of carbon steel or stainless steel with good wear resistance.

Model: Different models are suitable for mining screening operations of different sizes.

Mesh: The screen usually uses high-strength and wear-resistant metal woven mesh. The mesh size depends on the size of the ore particles. Common mesh sizes include 2mm, 5mm, 10mm, etc.

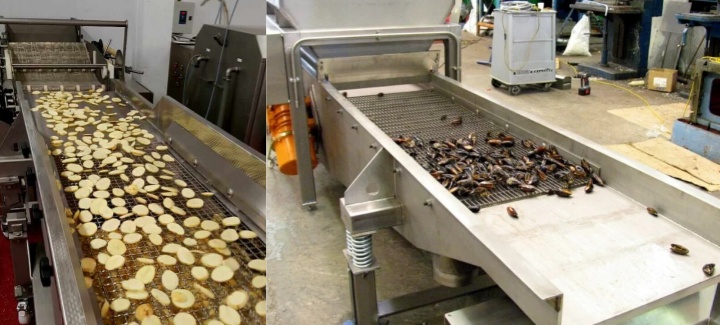

Type 2: Food processing vibrating screen

Material: Usually food-grade stainless steel or suitable food contact materials are used.

Model: Vibrating screens suitable for the food processing industry may have special designs, such as dustproof and easy to clean.

Mesh: The screen usually uses fine synthetic fiber mesh or stainless steel mesh. The mesh size depends on the size and requirements of the food particles. Common mesh sizes include 0.5mm, 1mm, 2mm, etc.

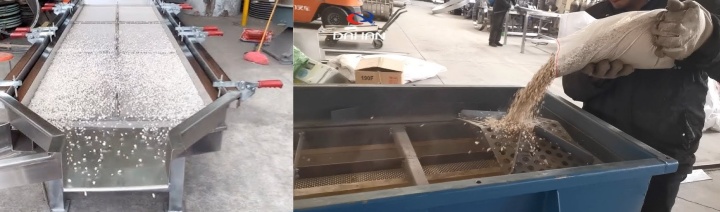

Type 3: Vibrating screen in the chemical industry

Material: According to the requirements of the chemical industry, stainless steel or special alloy materials with good corrosion resistance may be used.

Model: According to the special requirements of the chemical industry, there may be explosion-proof and corrosion-resistant designs.

Mesh: The material and mesh size of the screen will be determined according to the characteristics and processing requirements of the chemical raw materials. Usually, it is necessary to select a material with good corrosion resistance, and the mesh size is determined according to the particle size.

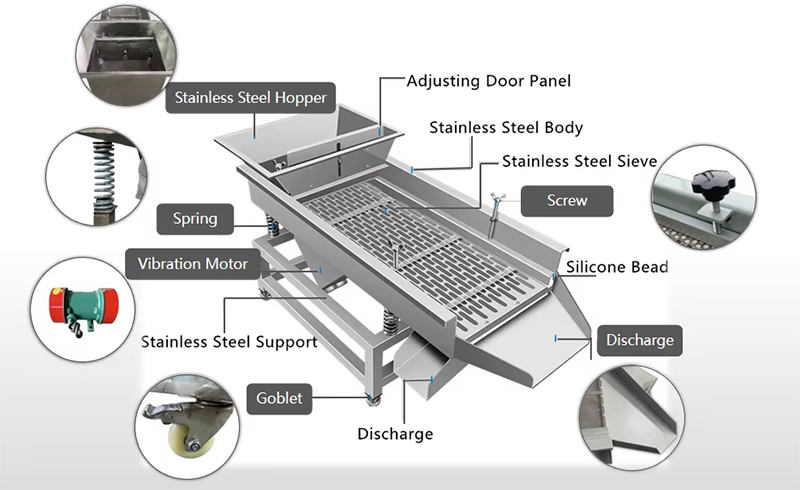

What are the components of linear vibrating screen?

The linear vibrating screen is composed of multiple components, each of which plays an important role and works together to complete the material screening work. The following are the common components of the linear vibrating screen:

Vibrator: Provides vibration force to make the entire screen surface vibrate linearly. The vibrator usually includes a vibration motor, a vibration block or an eccentric shaft, etc.

Screen box: It is the main structure of the linear vibrating screen, used to support the vibrator and the screen, usually welded by steel plates. The screen box contains the screen and the support structure.

Screen: The part used to screen the granular material, usually made of metal wire mesh or synthetic fiber mesh, with different aperture sizes, and different specifications of screens are selected according to needs.

Support structure: Used to support the screen, usually including structures such as crossbeams and longitudinal beams to ensure that the screen is firmly fixed inside the screen box.

Feeding port: Used to introduce granular materials into the screening area.

Discharging port: Used to collect the screened granular materials for subsequent processing or use.

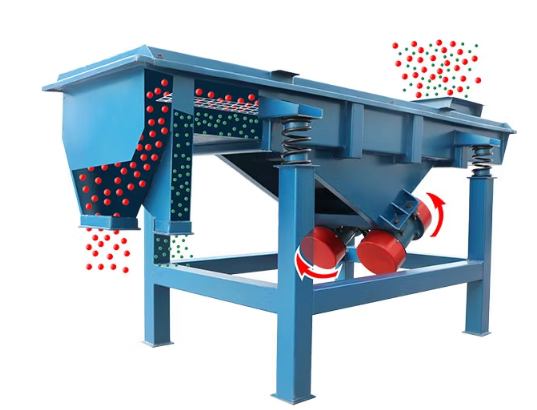

How does a linear vibrating screen work?

The working principle of the linear vibrating screen is simple and clear. The granular material enters the screening area through the feeding port. Under the action of the vibrator, the entire screen surface produces linear vibration, so that the granular material is screened and classified on the screen according to the size characteristics. Particles of different sizes are separated by the screen, and the particles that meet the requirements are collected through the discharge port to achieve particle screening and classification. The vibration amplitude and frequency can be adjusted to meet the screening needs of different granular materials.

Linear vibrating screen price

Dahan Machinery Linear Vibrating Screen has many years of production experience and technical accumulation. We use high-quality materials and advanced technology to manufacture vibrating screens to ensure stable and reliable product quality. We can provide customized vibrating screen solutions according to customer needs. At the same time, we have a professional after-sales team that can provide you with timely and thoughtful after-sales service to ensure the normal operation of customer equipment. The price of our linear vibrating screen varies according to factors such as model, material, and specifications. For specific prices, please contact our team for a quote!
