Industrial sieves can remove oversized particles and contaminants as an effective way to protect ingredients and final products from contamination and agglomeration, thereby improving the quality of your products and grading materials based on particle size.
Diameter: 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm
Mesh size: 2-500 mesh Capacity: 100-3300kg/h
Layers: 1-5 layers
Material: Stainless Steel 304, 316L, or Carbon Steel
Voltage: Three-phase, 220V/ 380V/ 415V, 50HZ/60HZ (can be customized)
Application industries: food and beverages, pharmaceuticals, chemicals, coatings, ceramics, metal powders, water treatment, recycling.
Industrial sieve is suitable for industrial sieving in mass production. It is to sieve or classify powder, granule or liquid through three-dimensional vibration, so that the products smaller than the size of the sieve pass through the sieve smoothly, and the larger particles stay on the sieve surface and are discharged from the corresponding outlet to remove the oversized foreign matter and Agglomerates, ideal for screening incoming ingredients and final inspection of finished products and grading according to particle size requirements, can provide up to 5 grades of grading in one operation for precise particle size distribution. It can be used in the separation process of solids in liquids, separation of different particle sizes in the same product, safety screening for eliminating foreign matter, homogenization of particles, etc. It allows throughputs from 100 to 25,000 kg/h, depending on the product, mesh size and feed flow to the machine. It is suitable for sieving from 36 microns to 25 mm.
Featured Industries Served by Industrial sieve: Food & Beverage, Pharmaceuticals, Chemicals, Coatings, Ceramics, Metal Powders, Water Treatment, Recycling

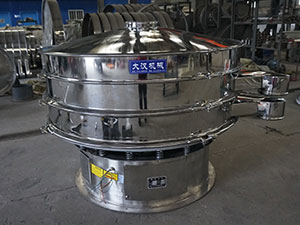

Vibro Sifter
Utilizes simple adjustment of counterweights on the motor shaft and the three-dimensional vibration they generate to screen materials, can be used to remove broken or undersized products, can provide up to 5 grades of classification in one operation to achieve precise particle size distribution.

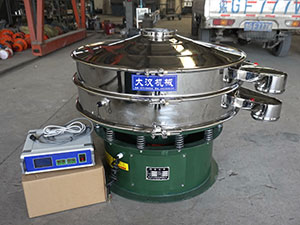

Ultrasonic Vibratory Sieve Machine
The ultrasonic system is used to apply high-frequency vibration to the screen, the frequency of the vibration breaks the surface tension, makes the stainless steel mesh effectively frictionless, and prevents too large and too small particles from clogging or clogging the mesh screen, which can be used in finer mesh (low to 20 microns).

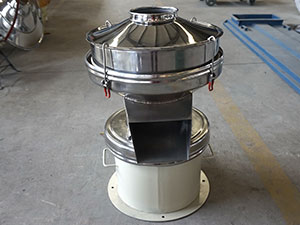

Filter Sieve Machine
It can remove unwanted particles or suspended solids present in the liquid, suitable for any process that needs to separate fibrous solids from liquids, reduce wastewater treatment costs and reduce product waste, such as soy milk, liquid chocolate, paint, syrup, paint, oil, etc.

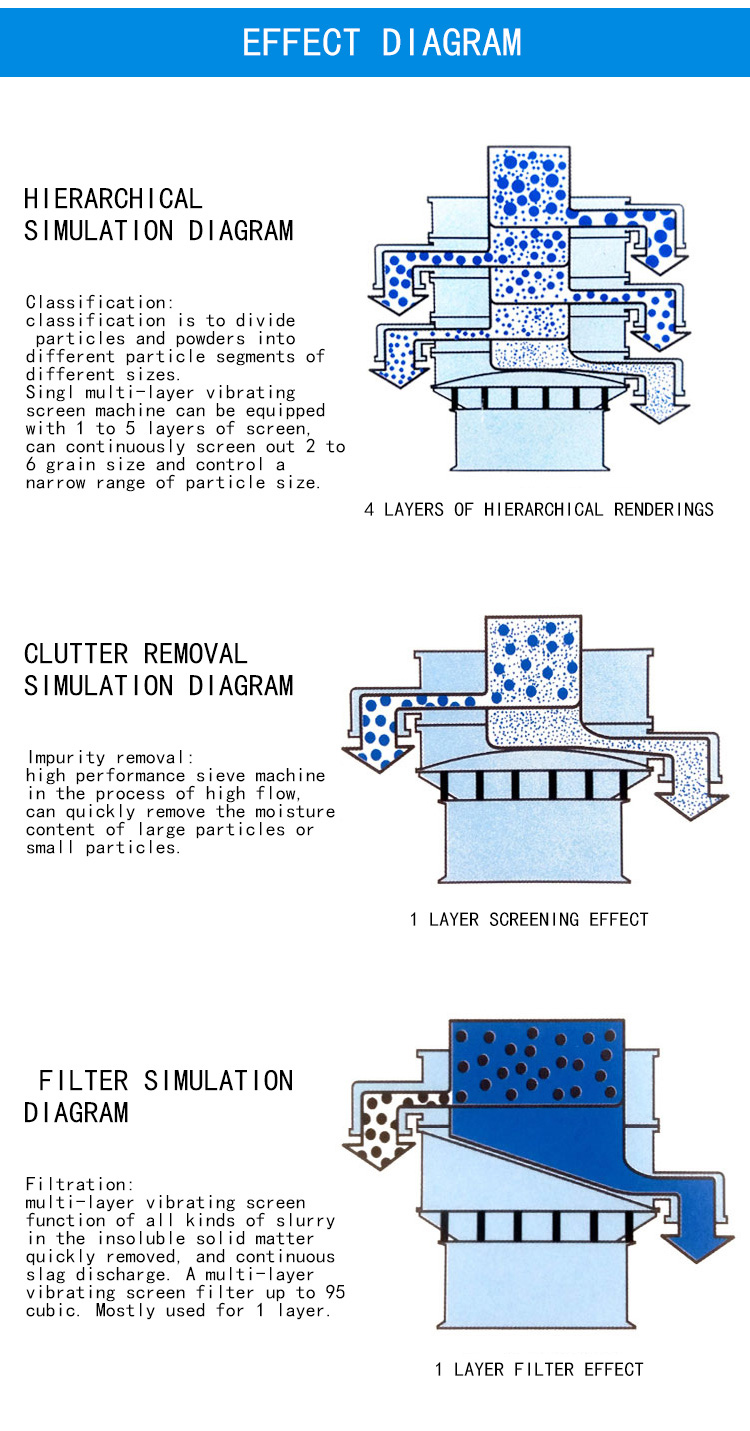

Grading and screening: Continuously classify and select mixed materials of different particle sizes to become specifications products of different particle sizes.
Screening impurities: high-flow powder material processing, quickly remove large particles or fine powder with little content.
Solid-liquid separation: Quickly remove insoluble solids in various slurries. Slurry impurity separation: Remove unqualified impurities from the slurry.
Plastic granule industrial sieve machine
Starch industrial sieve
Slurry industrial sieve
Can be screened to 500 mesh or 0.028mm - suitable for dry or wet screening and classification of powder, granular, fibrous materials or slurries, Screen mesh opening sizes can be 0.03-20.0 mm.
It has superb anti-binding properties – It helps to prevent screen clog neatly. Unlike other equipment, it does not create dust clouds as it operates. Like a robot, it has an automatic capacity to discharge separated materials.

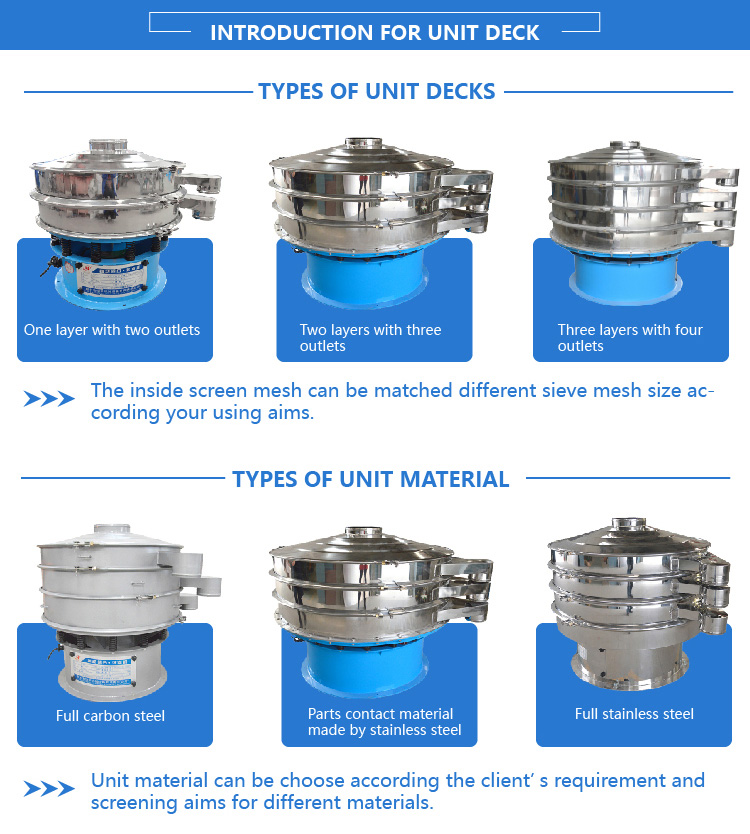

It contains up to 5 screens per unit – This makes it capable of conducting multiple operations with just a single unit; This is another feature that makes it cost-effective. Moreover, its screen can easily be adjusted or changed in five minutes. Now, that's quick enough.
It can work on its own for long hours – It does not entail much manual attention. In other words, its high durability makes it run with minimal supervision.
| Model | Diameter (mm) |
Feeding Size (mm) |
Frequency (RPM) |
Layers | Power (kw) |
Capacity (kg/h） |
| DH-400 | 400 | <10 | <1500 | 1-5 | 0.18 | 100 |
| DH-600 | 600 | 0.25 | 200 | |||
| DH-800 | 800 | 0.55 | 500 | |||
| DH-1000 | 1000 | 0.75 | 800 | |||
| DH-1200 | 1200 | 1.1 | 1200 | |||
| DH-1500 | 1500 | 1.5 | 1800 | |||
| DH-1800 | 1800 | 2.2 | 2000 |

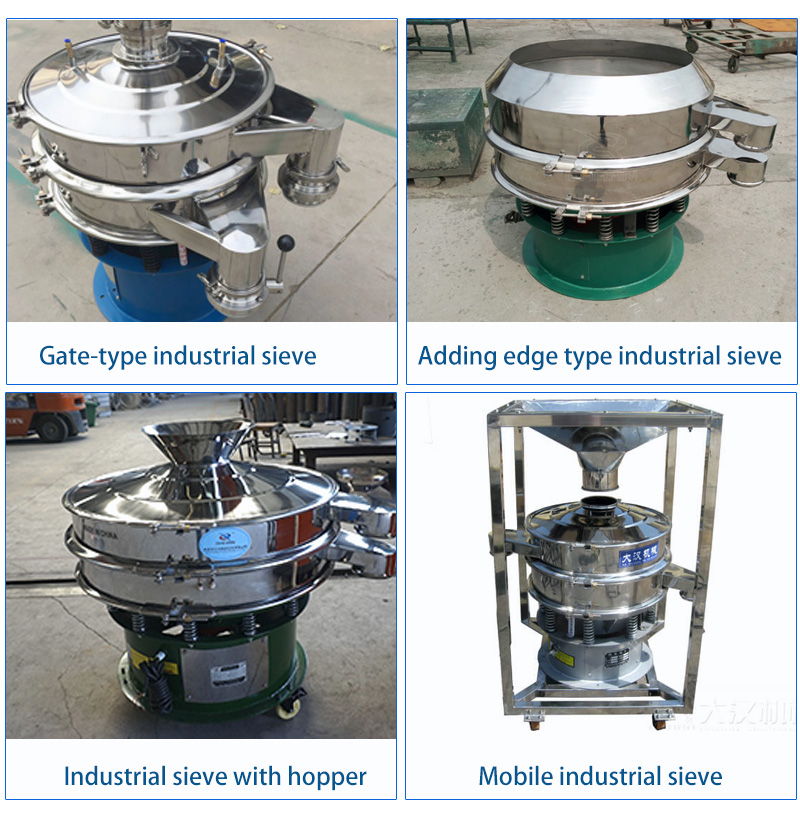

1. Gate-type industrial sieve: a product improved on the basis of ordinary industrial sieve, usually used to sieve ultra-light and ultra-fine materials, users can put a large amount of materials at a time to sieve for a long time , Only need to control the opening and closing of the gate to achieve the purpose of high-quality screening, Chinese medicine powder, pollen and other industries are suitable for this kind of vibrating screen.
2. Adding edge type industrial sieve: it expands the material inlet on the basis of the existing conditions of the previous two vibrating screens, and is also equipped with a special angle design to prevent the liquid from bursting out of the filtering type screening equipment, which is widely used in paint, water Filtration, pulp filtration and other industries.
3. Industrial sieve with hopper: Add a hopper to the feed port to facilitate feeding.
4. Mobile industrial sieve: universal wheels are installed at the bottom for easy movement, and can be installed and moved freely according to the needs of the site.

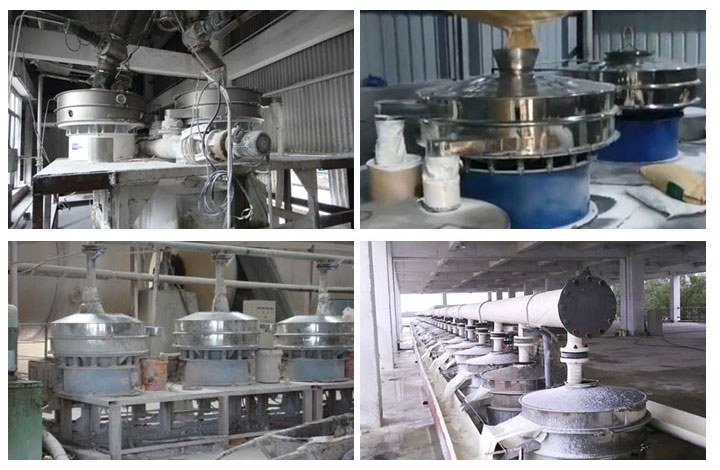

Food industry: additives, starch. Edible chemical industry, fruit juice, dairy industry and feed industry, etc.
Pharmaceutical industry: pharmaceutical intermediates, Chinese patent medicines.
Chemical industry: resin, paint, pigment, cosmetic industry, etc. Metal, metallurgy, mining: powder metallurgy, construction, kaolin, etc.
Ceramic industry: lead oxide, quartz sand, mud, spray soil particles.
Pollution treatment: industrial wastewater treatment, waste oil, garbage treatment, etc.
| Material | Aperture Size µ | Capacity | |
| Micron | Mesh Count | ltr/hr | |
| Salt | 2000 | 10 | 70000 |
| Flour | 850 | 20 | 18000 |
| Iron Powder | 315 | 50 | 60000 |
| Pharmaceutical Powder | 630 | 32 | 1000 |
| toner | 140 | 120 | 1300 |
When producing industrial sieve, we can tailor-made for customers according to the different characteristics and needs of each industry for a special requirement, so that industrial sieve is more suitable for the production of various industries and provides better service for production.
1. In response to the hygienic requirements in food production, Dahan Vibration Machinery Manufacturer has made some optimized designs on the structural details of the vibrating screen, such as the optimized design of the screen to hold solids; the specialized design of the connection structure; the use of food sealing materials such as silica gel, etc., and obtained The customer's approval to meet the hygienic conditions;
2. The scheme of large throughput and rapid screening
A variety of expansion components are used to match the in-line vibrating screen to meet the requirements of various production conditions such as low station, continuous uniform feeding, movable station, dust collection, etc., greatly improving production efficiency and unifying unit interface specifications And so on, completed the transformation service to many customers, the effect is good.

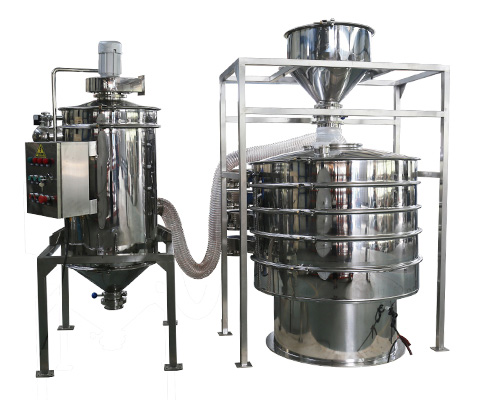

3. Small mobile screening workstation solution
This scheme can be based on an industrial sieve, with auxiliary storage, feeding, discharging and other components to form a comprehensive screening system, which can conveniently solve the production organization related to screening.
5. Solutions to various single screening problems.
In the screening work, we often encounter such problems that affect the screening effect. In the process of serving each household, we have accumulated many solutions to these problems, and have achieved good results;
6、Please tell us the problems you encountered in the screening process, and provide the material information: material name, bulk density, liquid content, (viscosity, concentration, solid content) processing capacity requirements, sieving particle size requirements, sieving Sub-purpose, etc., feedback to us, Dahan vibrating screen manufacturer professionals to solve the screening problem.
