Diameter: 450mm
Mesh: 400 mesh
Feeding amount (one-time): ≤5kg
Output: 400-1200 kg/h
Voltage: 380V
Power: 0.12KW
Weight: 42kg
Applicable materials: Applicable materials: soy milk, juice, paint, paint, latex paint, flour, sesame, etc.

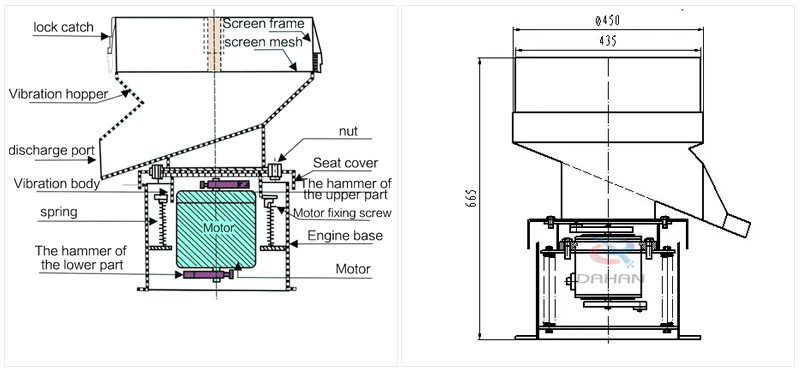

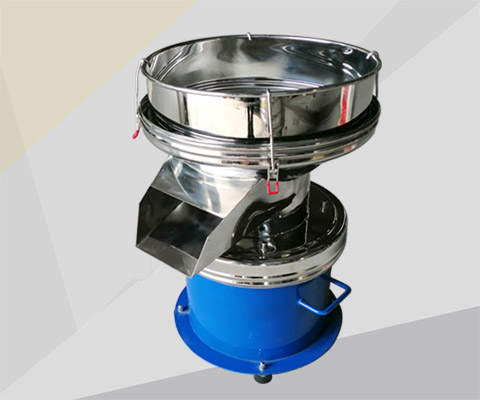

Filter sieve machine is a single-layer vibrating screen that integrates powder classification and liquid filtration. It is suitable for materials with low production volume or low impurities, such as soy milk, fruit juice, mud, lime slurry, mud, latex paint and other liquids.
Note: Liquid vibrating screening filters are mostly used in the food industry, so the material used is 304 stainless steel design.
1. The screen grid adopts the heightened design, which can effectively prevent the slurry from splashing, and the large observation port makes it easy to observe the screen surface.
2. Filter sieve machine adopts a large-diameter discharge channel, which can discharge quickly, and can process 1200kg of slurry and powder per hour.
3. The motor with waterproof grade IP54 + anti-seepage water treatment, the operation is safer, and the damage to the motor caused by liquid can be prevented.
4. Made of SUS304 stainless steel, the surface is smooth, it is not easy to store materials, and it is not easy to leak materials.
5. Small size, easy to move and easy to operate.
| Model | Screening area | frequency | power | voltage | layer number | Screening range |
| DH-450 | Φ400mm | 1440 | 0.18 | 380V | 一 | 0.038-3mm |
Scope of application: ink, color paste, paint, latex paint, soybean milk, fruit juice, beverage, milk, pulp, waste liquid, Chinese and western medicine, etc.
