Direct discharge sifter is for rough inspection screening and impurity removal of powders and granules, ideal for raw material screening, in-process screening, pre-packaging screening and dust removal and final production inspection of finished products.
Type: single motor (without automatic nesting), double motor (with automatic nesting)
Diameter: 400mm-1500mm Mesh: 140 mesh
Production: 3-30 t/h Power: 0.18 to 0.75 kw
Features: The feeding port and the discharging port are on the same center line, which helps to reduce the movement of materials in the screening machine, thereby shortening the screening time and discharging faster.
Applicable materials: washing powder, flour, metal powder, chemical powder, starch, fertilizer
Direct discharge sifter is used to inspect and remove foreign contaminants and large particles from products, including raw material screening, in-process screening, pre-packaging screening and dust removal, because the inlet and outlet are designed in the same vertical direction, which is different from traditional Compared to machines, the direct discharge sifter reduces the residence time of sifted material and provides higher throughput.
A range of add-ons and customization options are available to you, and while the direct discharge sifter is mirror-finished and sandblasted, you can also add ultrasonic deblinding systems, clamping systems and casters to make the machine more efficient for your screening needs.

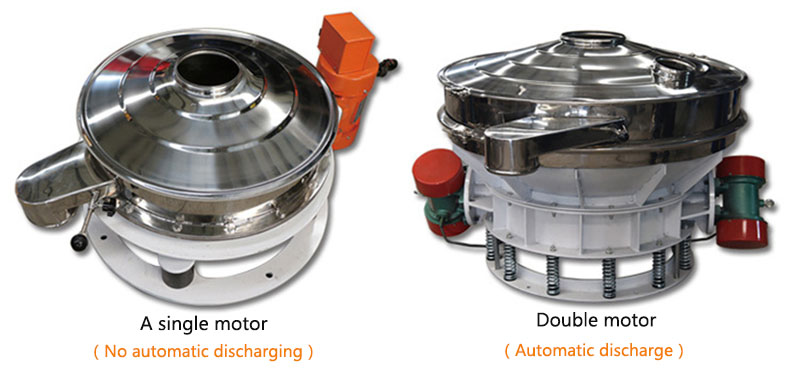

Direct discharge sifter designs single/dual excitation sources according to site requirements:
Single motored direct discharge sifter: It mainly produces up and down vibration on the material, and does not have the function of automatic discharge
Dual motored direct discharge sifter: It can generate vortex motion on the screen surface, with automatic discharge function, free control of production capacity, vertical feeding and discharge, and can be neatly installed in various powder production lines.

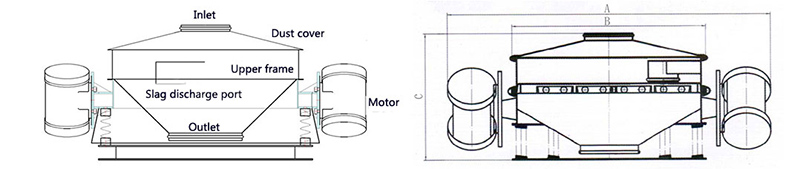

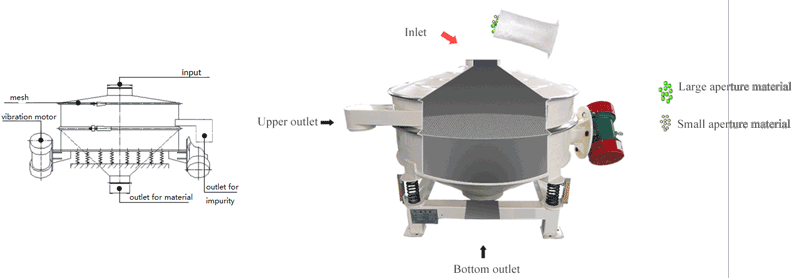

There are two vertically installed motors on each side of the direct discharge sifter. The material enters the sifter through the feeding port. According to different material screening requirements, the material passes through the sieve layers of different mesh screens, and the material larger than the screen aperture stays on the screen surface. , discharged from the upper discharge port, and the material smaller than the screen aperture is quickly sieved and discharged from the lower discharge port.
1. High throughput: the inlet and outlet are designed in the same vertical direction, the large flow outlet at the bottom enables the material to be discharged directly, the discharge speed is fast, and the output is 2-5 times that of the ordinary round screen.
2. Dust-free: It can be used directly in series in the pipeline to remove foreign objects and impurities in the pipeline, without manual operation, to avoid secondary pollution to the material, and can be directly used in conjunction with the vacuum feeder to achieve negative pressure and dust-free operation.
3. Small footprint: Because the direct discharge sifter motor is designed outside the equipment, the height of the equipment is reduced and the space is effectively used.
4. Easy to clean: Quick disassembly without any tools and easy to clean, thus increasing productivity and avoiding any chance of cross-contamination between batches.
| 型号 | 功率 | 筛面直径mm | 有效面积㎡ | 体积mm |
| ZPS-600 | 0.18 | 520 | 0.2124 | 740*600*560 |
| ZPS-800 | 0.25 | 720 | 0.4072 | 1010*800*600 |
| ZPS-1000 | 0.37 | 890 | 0.6221 | 1200*970*640 |
| ZPS-1200 | 0.55 | 1090 | 0.9331 | 1430*1170*700 |
| ZPS-1500 | 0.75 | 1390 | 1.5175 | 1780*1470*760 |

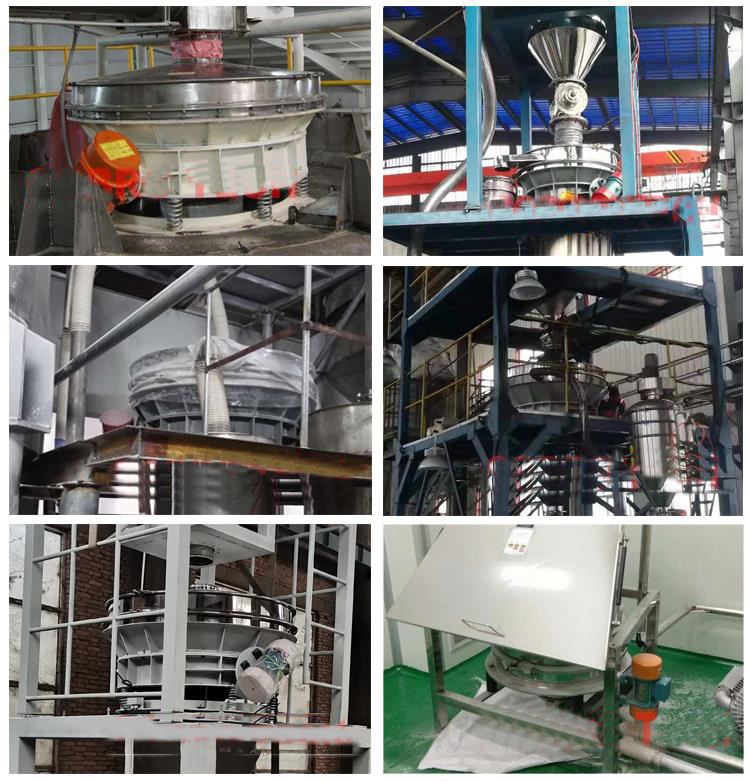

Direct discharge sifter is used to remove impurities, large particles and agglomerates from products and can be installed below bulk silos for safe screening of material or pneumatically conveyed from tanker or rail car receiving operations for post-delivery delivery Inspect feed, paired with a dust-free dosing station, can also be specially designed to enable operators to unload and inspect small or oversized bags of flour in one simple, dust-free operation.
