High-precision screening equipment for screening fine powder with mesh.
Power: 2.2 to 5.5 kw
Machine material: Q235A/SUS304
Production capacity: 200 kg/h
Applied Material
Starch, glucose powder, silica gel powder, and other powder materials

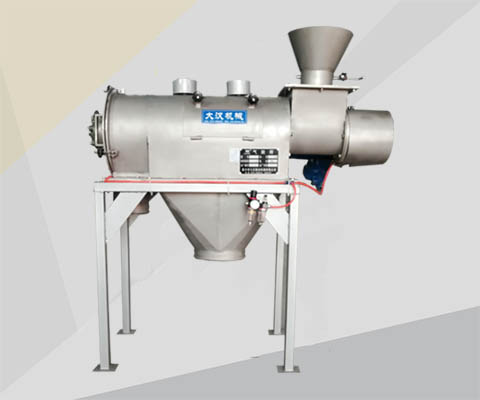

Air screening machine screen for cylinder, placed in the body, the material through the spiral conveyor system, and air mixing, atomization into the net cylinder; The material is simultaneously subject to centrifugal force and cyclone propulsion through the wind blade in the net cylinder, so as to force the material to spray through the net, and the material is discharged from the fine material discharge outlet, and the material can not be discharged from the coarse material discharge outlet along the wall of the net cylinder.
Small volume, light weight, stable without vibration
The casing has novel structure, simple installation and convenient control
The screen is washed by the cyclone and can be automatically cleaned
It has the function of crushing the lumped material
Wind power is the main power of screening, no wear, long service life
| 型号 | 材质 | 功率 | 适用 |
| WQS18-65 | Q235A | 2.2KW | Screen below 500 mesh |
| SUW304 | |||
| WQS30-100 | Q235A | 4KW | Screen below 500 mesh |
| SUW304 | |||
| WQS50-130 | Q235A | 5.5KW | Screen below 300 mesh |
All sorts of starch, glucose powder, xylitol, soybean protein, peanut protein, vitamin C, sorbitol, ganoderma powder, malt powder, coffee powder, bread flour, spices, food additives, powder, raw materials in powder, powder, activated carbon, epoxy resin, polyethylene powder, powder coating, pollen, dehydrated vegetable powder, egg powder, molybdenum disulfide, cellulose, nanoscale titanium dioxide, calcium fluoride and other powder materials.
