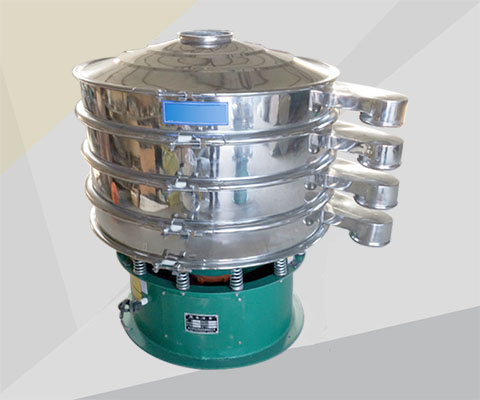

Sifter Machine

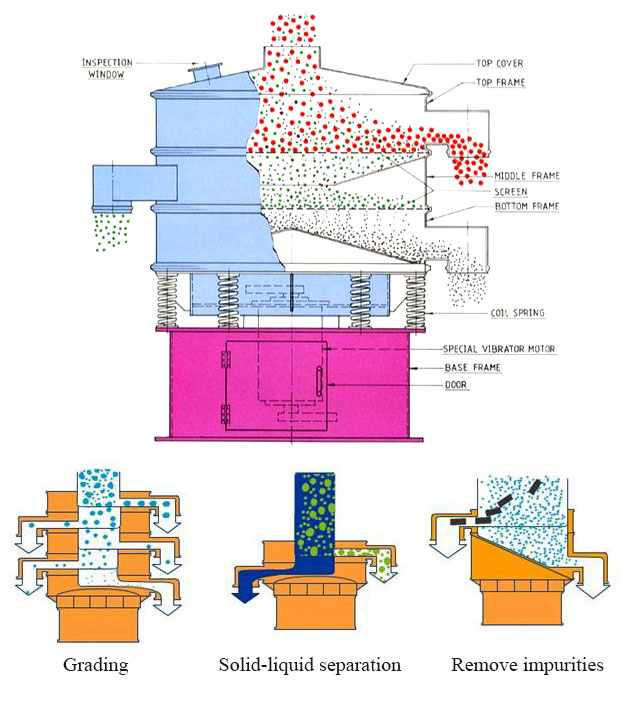

Sifter machine is ideal for screening incoming ingredients and final production inspection of finished products, it can be used for safety screening to eliminate foreign matter, separation process of solids in liquids, for separation of different particle sizes in the same product, etc.
-
Sifter Machine
Sieve aperture: 2-500 mesh
Processing capacity: 1-5 t
-
Vibro Sifter
Processing capacity: 1-5t
Material: Stainless steel 304
-
Vibratory Sifter
handling capacity: 1-5T
Feeding Granularity: 80-600meshes
-
Commercial Flour sifter
Feed granularity: < 10 mm
Feeding Granularity: 80-600meshes
-
Powder Sieving Machine
Sieve aperture: 2-500 mesh
handling capacity: 1-5T
-
Vibro Sifter Machine
Feed granularity: < 10 mm
handling capacity: 1-5T
-
Flour Sieve Machine
Feeding Granularity: 80-600meshes
Handling capacity: 1-5T
-
Vibro Sifter Manufacturer
Feeding Granularity: 80-600meshes
handling capacity: 1-5T
-
Powder Sieve
handling capacity: 1-5T
Weight: 13000-30000
-
Industrial Sieve
Sieve aperture: 2-500 mesh
Feed granularity: < 10 mm
-
Dust-free feeding station
Feeding capacity: 0-5t/h
Air pressure: 0.6 ~ 0.8MPa
Technical Specification
| Model | Diameter (mm) |
Feeding Size (mm) |
Frequency (RPM) |
Layers | Power (kw) |
Capacity (kg/h） |
|
 |
DH-400 | 400 | <10 | <1500 | 1-5 | 0.18 | 100 |
 |
DH-600 | 600 | 0.25 | 200 | |||
 |
DH-800 | 800 | 0.55 | 500 | |||
 |
DH-1000 | 1000 | 0.75 | 800 | |||
 |
DH-1200 | 1200 | 1.1 | 1200 | |||
 |
DH-1500 | 1500 | 1.5 | 1800 | |||
 |
DH-1800 | 1800 | 2.2 | 2000 | |||
Technical Features
-
1. It can eliminate the excessive pollution in the material, and the screening can reach 500 meshes.
2. The output is between 100 and 15,000 kg/h, depending on the product, mesh size and feed flow of the machine.
3. Machines with one, two, three or four decks allow 5-level screening.
4. The fully enclosed structure eliminates the problem of dust in the air, and manual interaction is pollution-free.
5. Various sieve cleaning systems are available, such as bouncing ball, ultrasound sieve cleaning system, brusher for cleaning sieves, the mesh is not blocked.
-
Video
Customer Case
| PRODUCT | MESH OPENING | DH-600 | DH-800 | DH-1200 | DH-1500 |
| Milk powder | 400µ | 350Kg/h | 800Kg/h | 1.800Kg/h | 2.800Kg/h |
| Orange juice | 1000µ | 1.600l/h | 3.500l/h | 8.000l/h | 12.000l/h |
| Sweet pepper | 1000µ | 180Kg/h | 350Kg/h | 1.000Kg/h | 1.300Kg/h |
| Serum lactic | 50µ | 1.000l/h | 2.200l/h | 5.000l/h | 7.500l/ |
| Sugar glass | 150µ | 800 Kg/h | 2.000 Kg/h | 3.000 Kg/h | 3.500Kg/h |
| Wheat flour | 300µ | 300 Kg/h | 600 Kg/h | 1.350 Kg/h | 2.100Kg/h |
| Ammonium sulfate | 350µ | 400Kg/h | 900Kg/h | 2.000Kg/h | 3.100Kg/h |
| Toner powder | 100µ | 90Kg/h | 170Kg/h | 400Kg/h | 600Kg/h |
| Glass powder | 100µ | 270Kg/h | 500Kg/h | 1.300Kg/h | 2.000Kg/h |
| Shredded tire | 1000µ | 300Kg/h | 650Kg/h | 1.500Kg/h | 2.200Kg/h |
| Purines | 125µ | 2.000l/h | 4.000l/h | 10.000l/h | 15.000l/h |
| PET recycled | 5000µ | 400Kg/h | 850Kg/h | 2.000Kg/h | 3.000Kg/h |
| Biofuel oil | 200µ | 800l/h | 1.600l/h | 4.000l/h | 6.100l/h |
| Acrylic paint | 80µ | 500l/h | 1.200l/h | 2.700l/h | 4.200l/h |
