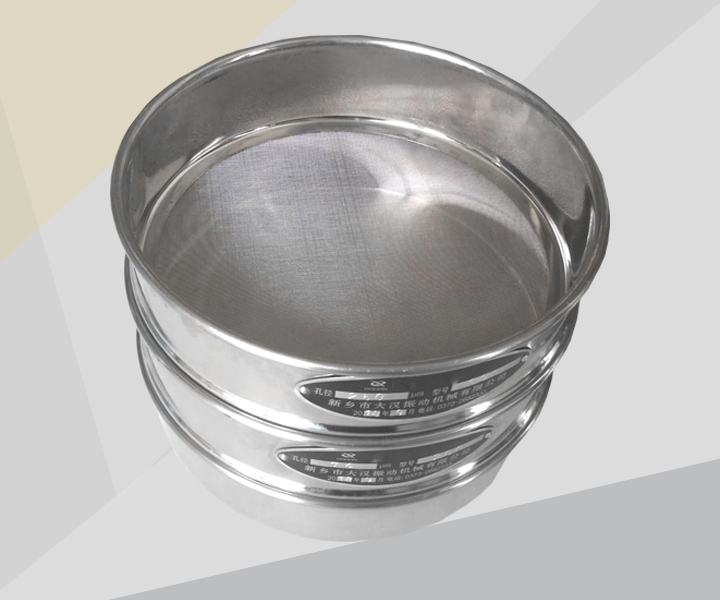

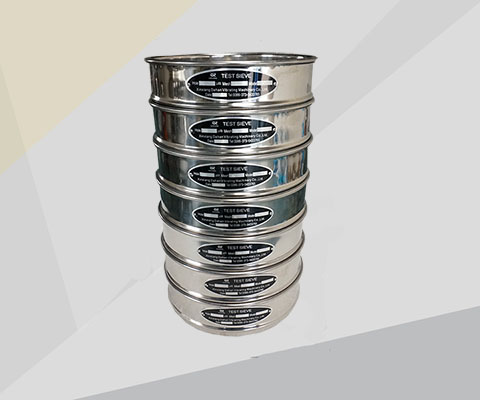

High precision analysis grain soil 45 micron 200 mm standard stainless test sieve
Layer(s): 1-8
Granularity: 0.038-3 mm
Diameter: 200/300 mm
Applied Material
Sand , soil, gravel, chemical,etc

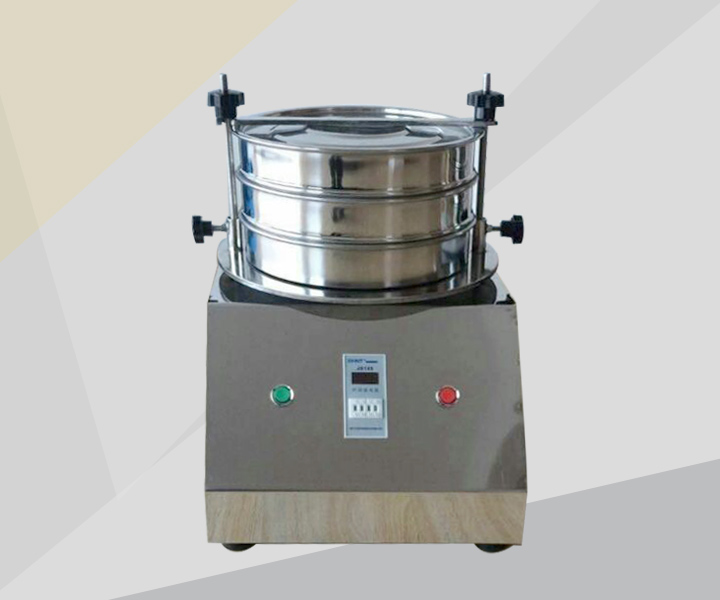

200mm standard test sieve shaker machine has been designed and manufactured to combine low cost with the benefits of a well designed and engineered shaker incorporating many features usually found only on larger more expensive models. It is experimental instrument for the particle size classification and detection of material particles.The sieving process is comparatively inexpensive, simple in concept and easy to use.To guarantee a high degree of reproducibility and reliability, our products and accessories fulfill the requirements of national and international standards.The working time of 300T test sieve shaker and other laboratory vibrating screens can be controlled and automatically shut down to ensure the repeatability of the test, the comprehensive function and the simple and convenient operation.
Contact us for more information on how this vibratory sieve can help you with your unique requirements.
High precision degree
Compact structure
Low noise
12 month warranty
Small size, light weight, and easy to move
Low energy consume
| Number | Mesh（mm） | Number | Mesh（mm） | Number | Mesh（mm） | Number | Mesh（mm） |
| 2 | 13 | 26 | 0.71 | 90 | 0.16 | 260 | 0.06 |
| 3 | 6.5 | 28 | 0.63 | 100 | 0.154 | 280 | 0.055 |
| 4 | 5 | 30 | 0.6 | 110 | 0.14 | 300 | 0.054 |
| 5 | 4 | 32 | 0.55 | 115 | 0.13 | 320 | 0.048 |
| 6 | 3.2 | 36 | 0.5 | 120 | 0.125 | 325 | 0.045 |
| 7 | 2.8 | 40 | 0.45 | 130 | 0.111 | 350 | 0.041 |
| 8 | 2.5 | 45 | 0.4 | 140 | 0.105 | 360 | 0.4 |
| 9 | 2.2 | 50 | 0.355 | 150 | 0.1 | 400 | 0.0385 |
| 10 | 2 | 55 | 0.315 | 160 | 0.098 | 500 | 0.03 |
| 12 | 1.6 | 60 | 0.3 | 180 | 0.09 | ||
| 14 | 1.43 | 65 | 0.25 | 190 | 0.08 | ||
| 16 | 1.25 | 70 | 0.22 | 200 | 0.075 | ||
| 18 | 1 | 75 | 0.2 | 220 | 0.07 | ||
| 20 | 0.9 | 80 | 0.18 | 240 | 0.065 | ||
| 24 | 0.8 | 85 | 0.17 | 250 | 0.063 | ||
| Stainless steel sieve specifications, if you need special specifications, you can contact online customer service consultation. | |||||||
It is widely used in food, medicine, chemicals, abrasives, pigments, mining, metallurgy, geology, ceramics, national defense And other industries, scientific research institutions, laboratories, laboratories, production control, etc. Used for testing Solid, powder, paste, etc. Screening, classification, particle size analysis, impurity content analysis, etc.
Didn't you find an industry that suits you? Don't worry:
We also support the screening granular structure of powder material, particle size, liquid class of the amount solid and debris content.
