Soil Sieve

Product Description

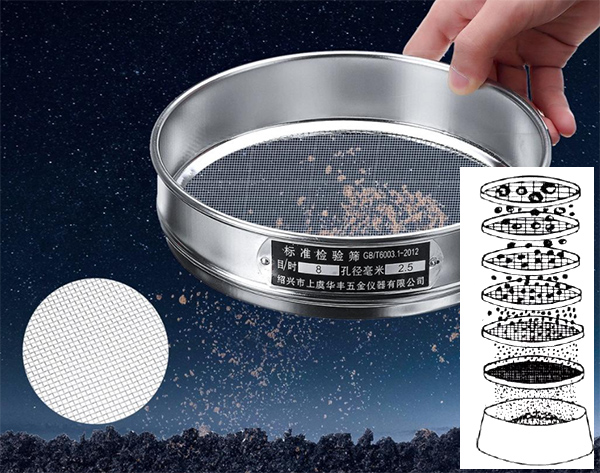

Standard soil sieve is mainly used for the separation of residual plants and soil. Because the soil contains a lot of water, in order to prevent rusting, the sieve frame and screen are made of 304 stainless steel. Standard soil sieve diameter 200mm, sieve size 0.075, 0.1, 0.125, 0.25, 0.5, 0.63, 1, 2, 5, 10mm.

Soil sieve mesh tolerance conforms to B/T6003.1-1997, GB/T6003.2-1997, GB/T6003.3-1997, can separate soil according to thickness, suitable for soil nitrogen content determination, soil potassium content determination , soil carbonate determination and other soil sieving experiments.

Aperture of circular hole mm:	100	80	60	40	20	10
Square hole diameter mm:	2.0	1.0	0.5	0.25	0.10	0.075

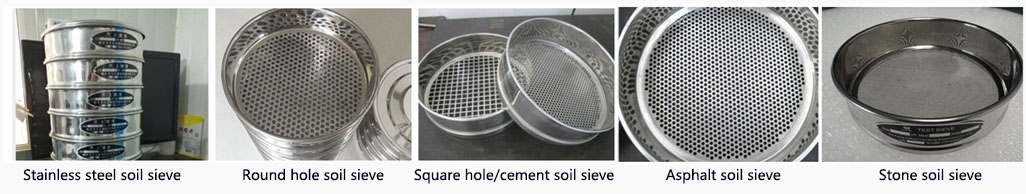

Types of soil sieve

New standard square hole [stone sieve]: 2.36, 4.75, 9.5, 16, 19, 26.5, 31.5, 37.5, 53, 63, 75, 90. 12pcs/set

New standard square hole [sand screen]: 0.075, 0.15, 0.3, 0.6, 1.18, 2.36, 4.75, 9.5. 8pcs/set

Note: The new standard square hole [stone sieve] and [sand sieve] are one set, of which there are two small sets.(Including bottom and cover)

Ф300 round hole: 0.074, 0.25, 0.5, 1, 2, 5, 10, 20, 40, 60. 10pcs/set

The diameter is 300mm, and the mesh size is 0.075, 0.1, 0.125, 0.25, 0.5, 0.63, 1, 2, 5, 10mm.

Material: stainless steel wire mesh, original hole iron plate. Provide various specifications and sizes, such as nylon sieve, washing sieve, cell sieve, etc. The sieve size can be customized.

Ф300 square hole [asphalt screen]: 0.075, 0.15, 0.3, 0.6, 1.18, 2.36, 4.75, 9.5, 13.2, 16, 19, 26.5, 31.5, 37.5, 53. 15 pcs/set

New standard Φ300 [Ballest sieve]: 1, 1.7, 2.5, 3.15, 5, 7.1, 10, 16, 20, 25, 35.5, 40, 45, 56, 63 (plus 16 covers) 15 pcs/set

Ф300【Railway grading screen】:0.075, 0.1, 0.5, 1.7, 7.1, 16, 25, 45

Ф200【Cement dry screen】: 0.08, 0.088, 0.2, 0.9 4 pcs/set

Ф200【Cement wet screen】:with sieve seat, sieve 0.08, percentage, meter, sprinkler, etc.

Serial number	name	Specification
1	New standard sand sieve (φ300, 7 pcs/set + bottom cover)	9.50、4.75、2.36、1.18、600um、300um、150um
2	New standard stone sieve (φ300 12 pcs/set + bottom cover)	2.36、4.75、9.50、16.0、19.0、26.5、31.5、37.5、53.0、63.0、0.75、90.0mm
3	Pavement base aggregate screen (φ200, 300, 11 pcs/set + bottom cover)	0.075、0.25、0.5、1、2、5、10、20、30、40、50
4	Bitumen Aggregate Square Hole Screen	0.075、0.15、0.3、0.6、1.18、2.36、4.75、9.5、13.2、16、19、26.5、31.5、53mm
5	New standard square hole screen (φ200×50mm 6pcs/set)	Square hole in iron plate:4.75、9.5、13.2、16、19、26.5、31.5、37.5、53mm ;
		Wire mesh square hole:0.075、0.15、0.3、0.6、1.18、2.36
6	Frame punching sand screen (casting screen) φ200 (11 pcs/set)	3.35、1.7、0.85、0.6、0.425、0.3、0.212、0.15、0.106、0.075、0.53mm
7	Pavement square hole aggregate screen	80、60、50、40、30、25、20、10、5、2、1、0.5、0.2、0.075mm
8	Asphalt pavement aggregate screen (φ200, 300, 15 pcs/set + bottom cover)	0.075、0.15、0.3、0.6、1.18、2.36、4.75、9.5、13.2、16.0、19.0、26.5、31.5、37.5、53mm
9	Sand screen φ200×50 (8pcs/set)	Iron plate round holes 10, 5
		Square hole copper mesh2.5、1.25、0.63、0.315、0.16、0.08
10	Stone sieve φ300×70mm (12pcs/set)	2.5、5、10、16、20、25、31.5、40、50、63、80、100mm
11	Lime sieve (φ200 5pcs/set+bottom cover)	0.125、0.71、0.9、5、20
12	New standard pharmacopoeia sieve φ200×50mm (9 pcs/set)	2、0.85、0.355、0.25、0.18、0.15、0.125、0.09、0、075mm

Standard soil sieve: 0.074mm-60mm

10 sieves plus a set of bottom cover, respectively: 0.074mm, 0.25mm, 0.5mm, 1mm, 2mm, 5mm, 10mm, 20mm, 40mm, 60mm. 0.075mm-1mm is stainless steel screen, 2mm above is galvanized punch orifice plate

Specification	Aperture (mm)	Specification	Aperture (mm)
Square hole copper mesh	0.074	Iron plate round hole	5
	0.25		10
	0.5		20
	1		40
Iron plate round hole	2		60
		Non-porous sieve	bottom cover

Structure

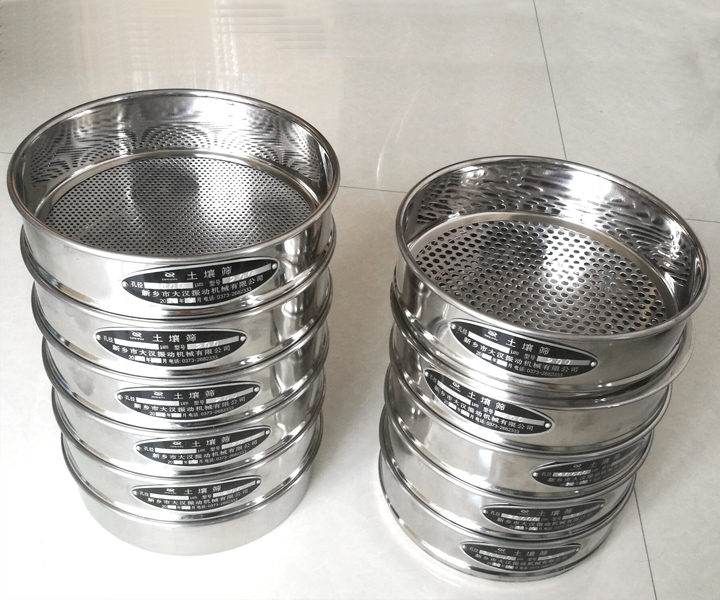

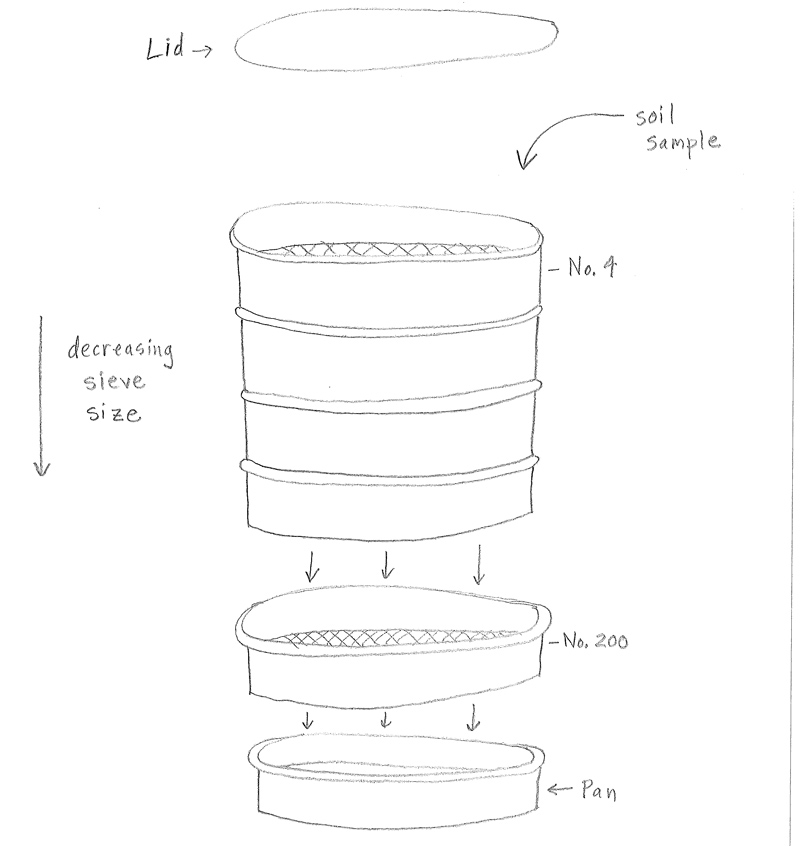

Standard soil sieve consists of sieve frame, sieve bottom and sieve mesh.

Screen frame: Screen frame material: It is composed of stainless steel plate, brass plate, cold-rolled iron sheet (chrome-plated or zinc-plated), plastic and other materials. It adopts one-time stamping and forming, the screen frame is flat, the finish is high, and the assembly and interchangeability of the set of screens are good.

Screen bottom: stainless steel wire mesh, galvanized wire mesh, nylon wire mesh, chrome-plated sheet, stainless steel sheet, galvanized sheet, copper sheet, wood board, aluminum alloy sheet, plastic sheet, etc.

Screen bottom shape: square hole, round hole, diamond hole

Features: wear-resistant, easy to use, suitable for grading screening

Bottom mesh: 304 stainless steel mesh (0.074mm--1.0mm) or galvanized punching plate (above 2.0mm).

Video

The relationship between soil sieve mesh and particle size

Mesh	Aperture (mm)	Mesh	Aperture (mm)	Mesh	Aperture (mm)
2 mesh	12.5	45 mesh	0.4	220 mesh	0.065
3 mesh	8	50 mesh	0.355	240 mesh	0.063
4 mesh	6	55 mesh	0.315	250 mesh	0.061
5 mesh	6	60 mesh	0.28	280 mesh	0.055
6 mesh	4	65 mesh	0.25	300 mesh	0.050
8 mesh	3	70 mesh	0.224	320 mesh	0.045
10 mesh	2	75 mesh	0.2	325 mesh	0.043
12 mesh	1.6	80 mesh	0.18	340 mesh	0.041
14 mesh	1.43	90 mesh	0.16	360 mesh	0.040
16 mesh	1.25	100 mesh	0.154	400 mesh	0.0385
18 mesh	1	110 mesh	0.15	500 mesh	0.0308
20 mesh	0.9	120 mesh	0.125	600 mesh	0.026
24 mesh	0.8	130 mesh	0.112	800 mesh	0.022
26 mesh	0.71	140 mesh	0.105	900 mesh	0.020
28 mesh	0.68	150 mesh	0.100	1000 mesh	0.015
30 mesh	0.6	160 mesh	0.096	1800 mesh	0.010
32 mesh	0.58	180 mesh	0.09	2000 mesh	0.008
35 mesh	0.50	190 mesh	0.08	2300 mesh	0.005
40 mesh	0.45	200 mesh	0.074	2800 mesh	0.003

Didn't you find an industry that suits you? Don't worry:

We also support the screening granular structure of powder material, particle size, liquid class of the amount solid and debris content.

Application

Standard soil sieve is suitable for analyzing soils with a particle size larger than 0.074mm. It can separate the soil according to thickness. It is suitable for soil nitrogen content determination, soil potassium content determination, and soil carbonate determination. All kinds of laboratories for grading, sieving, analysis and testing of samples.
