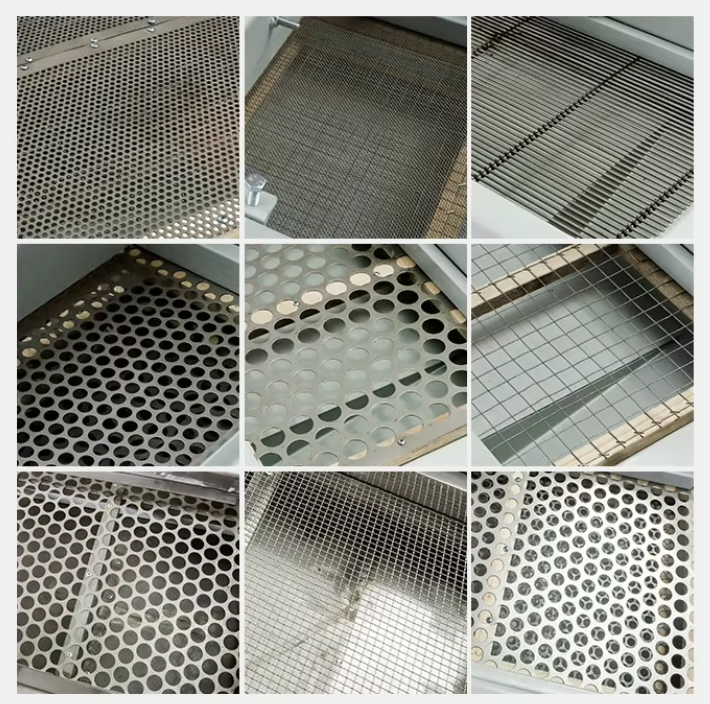

SZZ Custom Center Vibrating Screen is divided into single-layer and double-layer, with two installation methods: hanging type and seat type. Small-size screens are equipped with mobile seats. The screens are divided into single-layer and double-layer screens. The transmission forms are divided into left and right installations. The screens are woven meshes and punched screen plates. The motion trajectory of SZZ Custom Center Vibrating Screen is circular. It is used for screening of coarse, medium, and ultra-fine materials such as coal and ore at all levels. It can also remove cement and medium from materials. It is the most widely used traditional vibrating screen in my country. The screen machine has a simple structure, is sturdy and reliable, easy to maintain, and has high production efficiency.

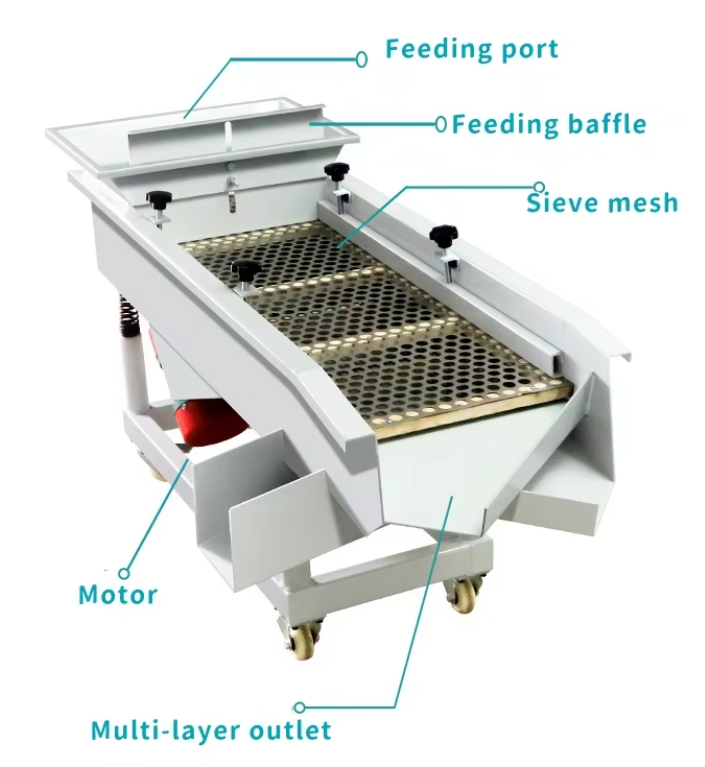

SZZ Custom Center Vibrating Screen is mainly composed of screen box, exciter, suspension (or support) device, and motor. The center line of the pulley is located between the center of the bearing and the center of the eccentric block, and the center line of the pulley is located on the center of mass of the eccentric block and the vibrating body. The pulley does not vibrate with the screen box, but only rotates, so a larger amplitude can be adopted, which improves the screening efficiency.
Simple structure, strong and reliable: SZZ Custom Center Vibrating Screen adopts circular motion trajectory, simple structure, strong and durable, easy maintenance.
High-efficiency screening: Due to the strong vibration of the screen box, the phenomenon of material blocking the screen holes is reduced, the production efficiency is improved, and the screening efficiency can reach 90-95%.
Multiple installation methods: The equipment has two installation methods: hanging type and seat type, which are suitable for different working environments and needs.
Wide range of application: Suitable for industrial sectors such as coal, metallurgy, building materials, and chemicals to grade small and medium-sized materials.
Low noise and long life: Manganese steel weaving or wear-resistant rubber screen is used, with long service life and low noise.
Processing capacity: 20-300 tons/hour
Feeding particle size upper limit: 40-150 mm
Motor power: 2.2-18.5 kW

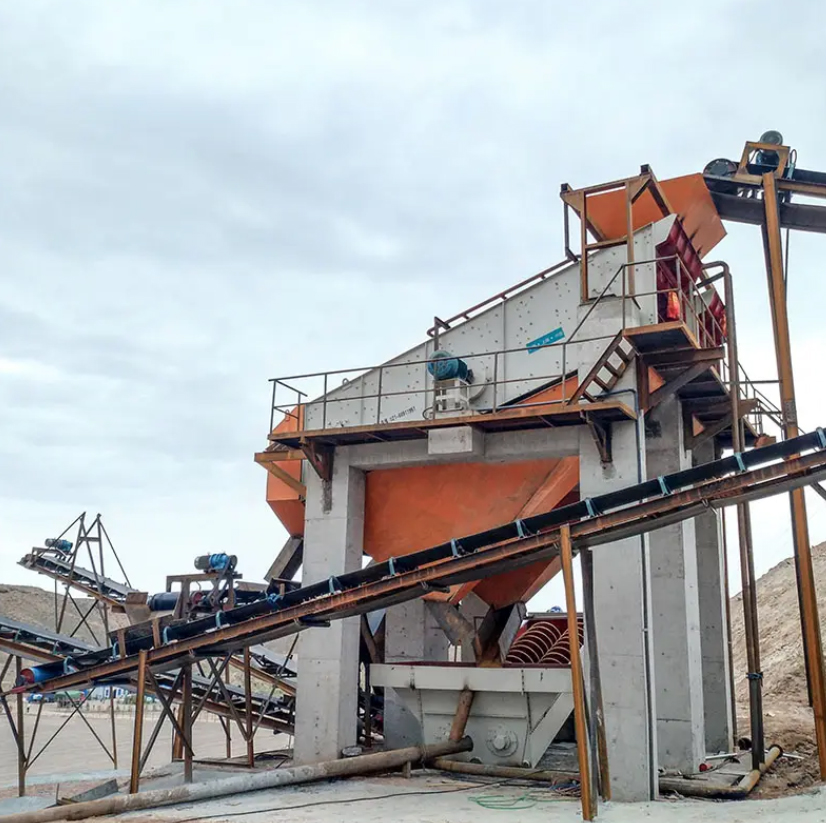

SZZ Custom Center Vibrating Screen is widely used in machine-made sand production lines, sand and gravel yards, concrete sand making, dry mortar, machine-made sand, power plant desulfurization, quartz sand and other fields. Its high efficiency and reliability make it an indispensable screening in these industries.
