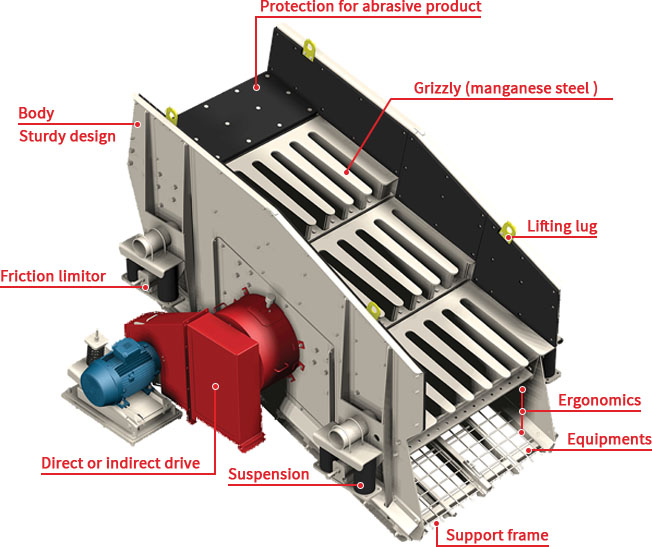

Bar sieve with the use of self-cleaning bar sieve plate especially for less than 10mm wet viscous raw coal screening better to solve the problem of screen plugging.
Processing capacity: 100-500t/h
Maximum feeding particle size mm: 220-300
Applied Material
Screening of coal, limestone, gravel, gravel, metallic or nonmetallic ores and other materials.
The self-cleaning bar sieve plate is especially good for the screening of wet viscous raw coal less than 10mm to solve the sticking problem of screen mesh. The equipment adhering to the rigorous and pragmatic design concept, combined with the application and extension in the mine, coal industry, make its design more mature and perfect, with strong vibration force, high screening efficiency, low noise, the use of economic characteristics.
1. The structure is simple, compact, beautiful appearance, the stiffness of the whole machine and the strength of each part
2. Relatively small volume, light weight, unit equipment volume and weight processing capacity is large, easy to system process layout
3. Easy installation and debugging, stable and reliable operation, easy operation and maintenance
4. Screen surface structure and type modular design, easy to replace, can meet the needs of different operations
5. Large handling capacity, not easy to plug holes, suitable for high moisture, high viscosity material separation, classification, effective screening, wide application range
| model |
Overall dimension (width x length) |
Angle° | feeding granularity |
Double amplitude (mm) |
Vibration time (1/min) |
processing (t/h) |
motor power (kw) |
| BTZS-936 | 36"×12' | -5~0 | 220 mm | 11±1 | 800 | 200-220 | 18.5 |
| BTZS-1248 | 46"×16' | -5~0 | 300 mm | 11±1 | 800 | 250-280 | 22 |
| BTZS-1548 | 60"×16' | -5~0 | 300 mm | 11±1 | 700 | 320-350 | 30 |
| BTZS-1560 | 60"×20' | -5~0 | 300 mm | 11±1 | 700 | 320-350 | 30 |
| BTZS-1660 | 63"×20' | -5~0 | 300 mm | 11±1 | 700 | 350-280 | 30 |
| BTZS-1848 | 70"×16' | -5~0 | 300 mm | 11±1 | 700 | 350-280 | 30 |
Metallurgy (iron ore, limestone, fluorite, cooling furnace slag, coke and other raw materials), coke, coal, coal washing, chemical industry, building materials and hydropower projects, abrasive waste treatment, quarry and other industries of materials washing, screening, classification, etc. In iron ore fine screening, raw coal classification, gold, building materials and hydropower, nuclear power engineering sand screening with wear-resistant screen plate.
Didn't you find an industry that suits you? Don't worry:
We also support the conveyor of powder,particle,mucus, liquid materials in other industries.
