Roller screen is a screening equipment for grading the size of materials
Production: 50-800 t/h
Cylinder speed: 16-20r/min
Roller Angle: 8°-16°
Motor power: 2.2-45KW
Applied Material
River sand, limestone, granite, pebble, etc
The drum device is mounted on the frame at an inclined Angle. The motor is connected with the drum device through a coupling through a reducer to drive the drum device to rotate around its axis. When the material enters the drum device, due to the tilt and rotation of the drum device, the material on the screen surface turns over and rolls, so that the qualified material (products under the screen) is discharged through the outer circle of the drum screen, and the unqualified material (products on the screen) is discharged through the end of the drum. In the rolling process is located in the upper part of the screen beat fight will always beat drum device, prevent material stuck in the screen affect the use of the screen.
Applicable material range is wide
High screening efficiency
It consumes little energy
Low noise of equipment
Large sieve weight, easy to scale up
| model |
processing (t/h) |
power (kw) |
sieve-drum diameter (mm) |
sieve-drum height (mm) |
grain-size (mm) |
Under the screen size (mm) |
external dimension (Length x width x heightmm) |
| GTS1015 | 50 | 3.0 | 1000 | 1500 | ≤300 | 0～100 | 2600×1400×1700 |
| GTS1020 | 100 | 4.0 | 1000 | 2000 | 3390×1400×2140 | ||
| GTS1225 | 160 | 5.5 | 1200 | 2500 | 4146×1600×2680 | ||
| GTS1530 | 250 | 7.5 | 1500 | 3000 | 4460×1900×2820 | ||
| GTS1545 | 350 | 11 | 1500 | 4500 | ≤400 | 5960×1900×3080 | |
| GTS1848 | 450 | 15 | 1800 | 4800 | 6500×2350×4000 | ||
| GTS2055 | 600 | 22 | 2000 | 5500 | 7500×2550×4800 | ||
| GTS2265 | 800 | 30 | 2200 | 6500 | 8500×2750×5000 |

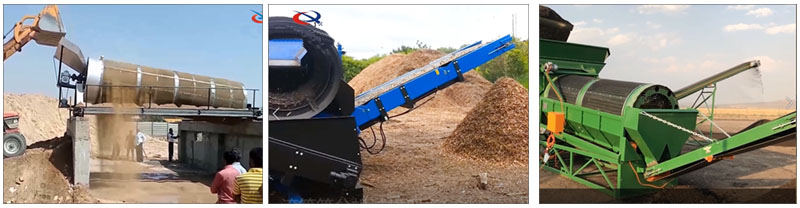

Scope of application: used in sand quarry, mine, construction site, highway, road and bridge construction, concrete mixing station, water conservancy and hydropower, chemical industry and other industries. Applicable materials are: river pebble, granite, limestone, basalt, coal gangue, weathered sand, river sand, sand and so on.
