The main role is dehydration, desliming, demediating, can be used for sand and stone factory washing sand, coal slime recovery, dressing plant tailings dry drainage, etc.
Screen Surface area:6-13 (m2)
Handling capacity: 30-100T/h
Feeding Size:≤300(mm)
Applied Material
Ore, mineral, mining, coal, ore, iron ore, sugar, etc

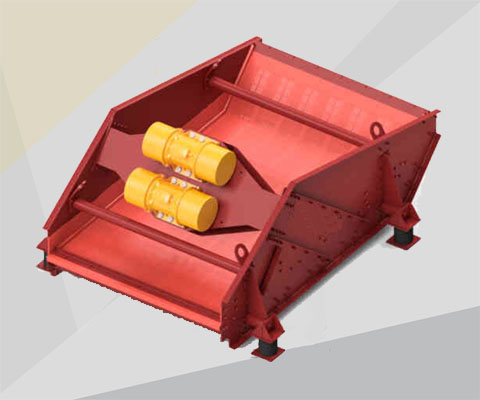

Dewatering screen adopts double motor self synchronization technology, universal eccentric block, adjustable amplitude vibrator. It is mainly composed of screen box, vibrator, supporting system and motor. Two mutually unrelated vibrators for synchronous reverse operation, two groups of eccentric mass produced by centrifugal force along the direction of vibration component superposition, reverse centrifugal offset, thus forming a single vibration along the direction of vibration, so that the screen box reciprocating linear motion.
1. Low noise and light weight.
2. Relatively small volume, large processing capacity per unit area.
3. Professional design of frequency, amplitude, low consumption power source, suitable for a variety of dehydration needs, 24 hours continuous dry drainage operation.
4. High wear resistant sieve plate long service life, modular assembly design, easy to replace.
5. The way of riveting and welding of shaped steel components makes the frame body with no internal stress, high strength, light weight and durable.
Model | Screen surface | Feeding granularity mm | Handling capacityt/h | |
Area | Screen structure | |||
ZSM1542 | 6 | Slot | ≤300 | 75-100 |
ZSM1556 | 8 | Punch or strip | ≤300 | 30-60 |
2ZSM1556 | 8 | Upper punch and lower strip | ≤300 | 30-60 |
ZSM1556B | 8 | Punch or strip | ≤300 | 30-60 |
2ZSM1556B | 8 | Upper punch and lower strip | ≤300 | 30-60 |
ZSM1756A | 9.5 | Punch or strip | ≤300 | 50-80 |
2ZSM1756A | 9.5 | Upper punch and lower strip | ≤300 | 50-80 |
ZSM1756B | 9.5 | Punch or strip | ≤300 | 50-80 |
2ZSM1756B | 9.5 | Upper punch and lower strip | ≤300 | 50-80 |
ZSM1856 | 10 | Punch or strip | ≤300 | 50-80 |
ZSM2065 | 13 | Punch or strip | ≤300 | 70-100 |
2ZSM2065 | 13 | Upper punch and lower strip | ≤300 | 70-100 |
ZSM2065B | 13 | Punch or strip | ≤300 | 70-100 |
2ZSM2065B | 13 | Upper punch and lower strip | ≤300 | 70-100 |
Widely used in tailings treatment, coal slime dehydration, quartz sand washing and mud dehydration processing links.
Suitable for medium and fine material dehydration, medium drainage, spraying, dry and wet classification
Didn't you find an industry that suits you? Don't worry:
We also support the screening bulk, medium and small granule materials in other mineral industries and support customization.
