Vertical screw conveyor is mainly used for vertical or large dip Angle conveying powder and granular materials.

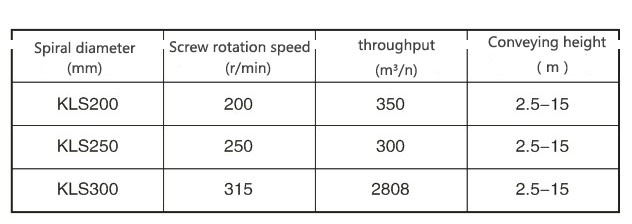

Delivery capacity: 350-2808m³/ N
Transmission height: 2.5-15m
Spiral speed: 200-315 (r/min)
Applied Material
Fertilizer, flour, sand, lump coal, ash and so on

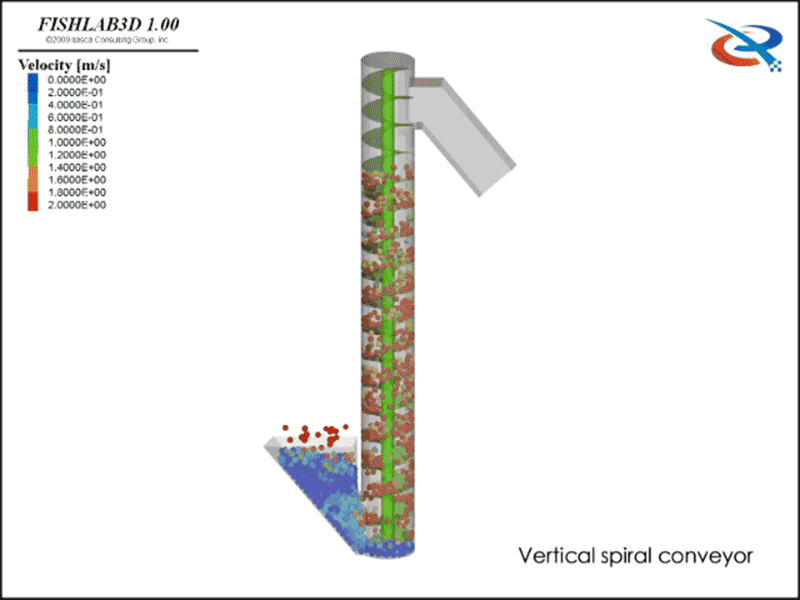

Vertical screw conveyor using spiral blade materials will be transported along the fixed inside the casing goes on to achieve transport work, the head and tail bearing moved to the outside shell, hoisting shaft sealing device adopts the sliding bearing the dust-proof, bearing generally use of powder metallurgy, transport cement adopts the felt pad, hoisting shaft and propeller shaft connected by sliding block.
Vertical or large dip Angle conveying, small footprint
It is equipped with cleaning device to avoid blockage
Push the pipeline strongly to strengthen the flow of materials
It can automatically control feeding and sealing conveying

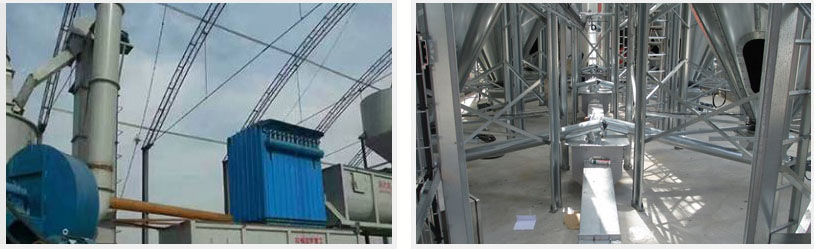

Products are mainly applicable to: cement, chemical fertilizer, corn, coal cinder, etc., widely used in building materials, metallurgy, chemical industry, coal ash, medicine, food and other industries material temperature is generally not more than 80℃.
