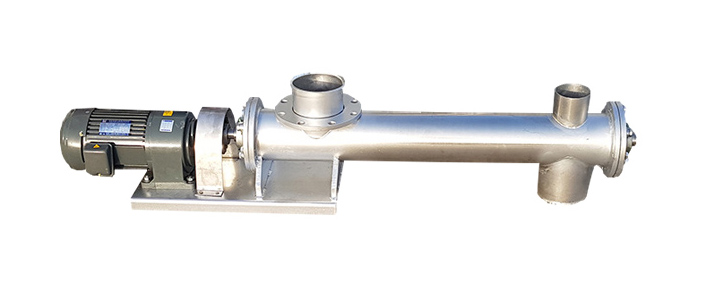

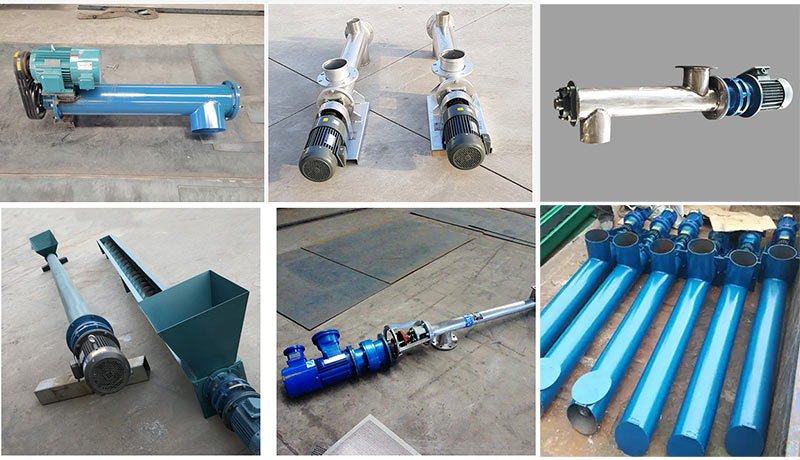

Small auger feeder is used for uniform and continuous feeding and unloading of powdery materials in small batches. It can reliably and accurately feed various dry solid materials in a very small footprint, and can discharge materials horizontally or vertically.
Spiral diameter: 114mm, 159mm, 160mm, 250mm, 315mm
Length: 100mm-2000mm
Feeding rate: 0.01—1000 kg/h
Small auger feeder is a small-diameter auger feeder, also known as micro auger feeder, with screw diameters of 100mm, 114mm, 133mm, 159mm, etc., length of 100-2000mm, delivery capacity of 0.01kg/h-1000kg/h, available in Reliable and accurate feeding of various dry powder and granular materials in a very small footprint, designed for small feeding speeds and laboratory applications, usually used in the production of chemicals and pharmaceuticals or any precise small-volume delivery process.

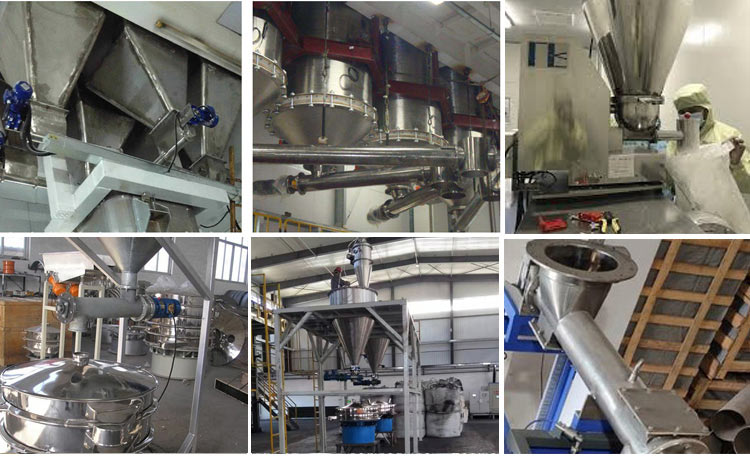

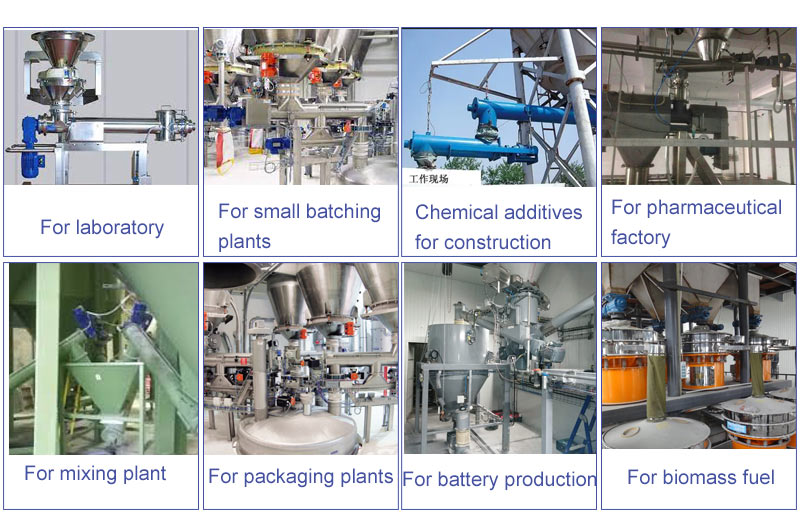

Small auger feeder can be used in pharmaceutical, chemical, experiment, seasoning and other scenes that require continuous, uniform and accurate feeding of ingredients. It is usually installed under the silo and the main screw feeder to feed a small amount accurately.
| Diameter | 100 mm | 160 mm | 200 mm | 250 mm |
| Speed | 16 rpm | 32 rpm | 131 rpm | 90 rpm |
| Motor Power | 2.2 KW | 1.1kw | 5.5 kw | 4 kw |
| Capacity | 0.5M3/H | 1-2 M3/H | 3.5 M3/H | 15 M3/H |
| Transport Length | 1610 mm | 1700 mm | 5850 mm | 5200 mm |
| Transport Direction | Horizontal | Horizontal | Incline ;Incline degree is 35-490 | Incline ;Incline degree is 300 |
1. The pipe diameter is 114mm, 159mm, 160mm, etc., and the length is 100-2000mm. It can reliably and accurately feed various dry powder and granular materials in a very small footprint.
2. The conveying capacity ranges from 0.5 kg/hour to 1000 kg/hour, suitable for any occasion that requires precise and small quantities.
3. The conveying process is carried out in a sealed round tube to avoid pollution to the conveyed products. It is usually used in the production process of fine powder and ultrafine powder, and the fine powder and ultrafine powder are quantitatively and continuously transferred from the storage bin or funnel. to the receiving device.
4. Small size to meet industrial and commercial needs with minimal headroom and floor space.
The Small auger feeder is specially designed for users with smaller output and laboratory applications. It can reliably and accurately feed various dry solid materials with a very small footprint. It is usually installed in the silo, main screw feeder The bottom of the feeder, a small amount of precise feeding.
Delivery range: 0-100g/h, 100-1000g/h, 1-5Kg/h, 5-10Kg/h, etc.
Conveyable materials: polyacrylamide, flocculant powder, resin powder, spices, ferrous sulfate powder, quartz sand particles, diatomaceous earth, etc.
Conveying rapeseed meal
Conveying fertilizer

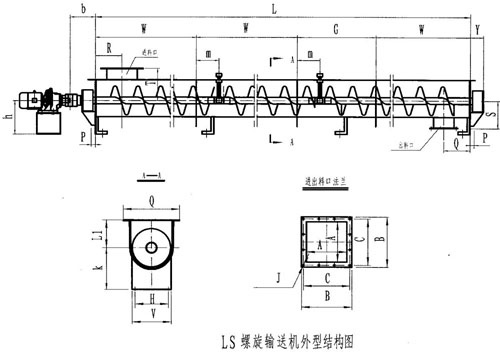

| model | W | A | B | C | D | N | Q | Y | L | K |
| LS100 | 2500 | 100 | 180 | 146 | 10 | 4 | 180 | 190 | 90 | 112 |
| LS160 | 2500 | 160 | 240 | 206 | 10 | 4 | 200 | 190 | 112 | 150 |
| LS200 | 3000 | 200 | 300 | 256 | 14 | 8 | 225 | 190 | 112 | 180 |
| LS250 | 3000 | 250 | 350 | 306 | 14 | 8 | 250 | 190 | 140 | 224 |

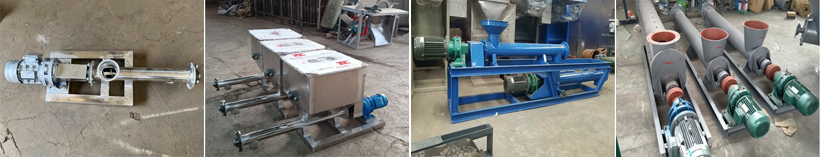

1. It can be equipped with speed regulating motor and explosion-proof motor
Speed regulation mode: electromagnetic speed regulation, stepless speed change, frequency conversion speed regulation, speed regulation motor (220V)
2. It can be equipped with stirring device, weighing and measuring device, water cooling device, warehouse wall vibration device, heating device, hopper, etc.
3. The shape of the outer tube can be round tube type and U-shaped groove type
4. The screw shaft can be divided into shaft type and shaftless type
5. Customizable double helix small auger feeder
6. It can be installed tilted up or down
Didn't you find an industry that suits you? Don't worry:
We also support the conveyor of bulk materials in other industries.
Xinxiang Dahan Machinery specializes in the production of small auger feeders, with reasonable prices and a one-year warranty, and provides customized quick selection and drawing parameters. This product has specifications (single shaft, no shaft), shell material: carbon steel, stainless steel. The design can be reasonably selected according to the particle size, conveying volume and conveying distance of the material to be conveyed to ensure that the material is not blocked, not arched, and the material is discharged smoothly. The parameters and drawings are provided free of charge.
Production capacity: The factory covers an area of 10,000 square meters, dozens of processing equipment, 10 full-time technicians, can quickly produce drafts in 2 hours, shorten the construction period, standard parts are in stock, and special customization takes 7 working days.
Quality assurance: There are production control, equipment management, training and other procedures to check the quality of raw materials and semi-finished products required for the production process, and to check the operation of the equipment one by one, such as whether the raw materials meet the standards (thickness ≥ 10-12mm), Unqualified semi-finished products shall not be produced without review to prevent unqualified products from flowing into the next process.
