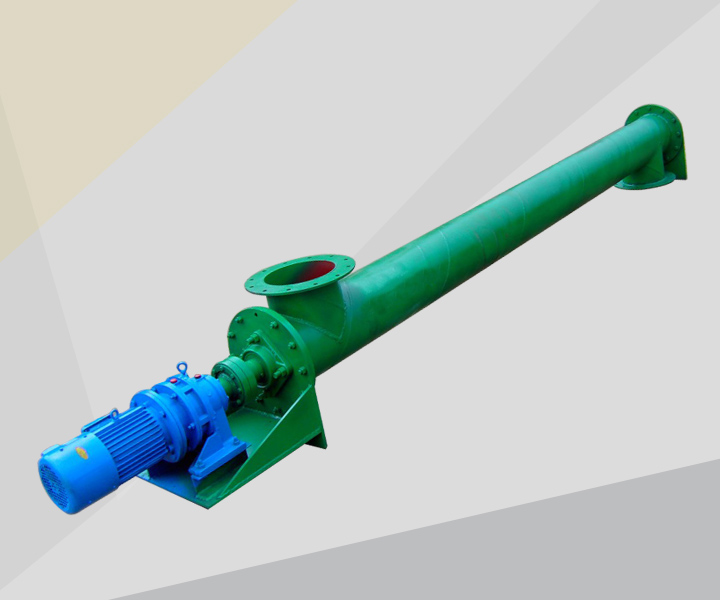

Screw conveyor for sale used to convey bulk materials from one part of a process to another, horizontal screw conveyors are available in a wide range of sizes, lengths, configurations and materials of construction.
Power(W):0.4 - 22kW
Conveying capacity: 2.2-388 m3/h
Installation slope:0~60°
Applied Material
Fly ash, grain, fertilizer, mineral powder,etc.
Horizontal screw conveyors are the most widely used type of screw conveyor. Used to convey bulk materials from one part of a process to another, horizontal screw conveyors are available in a wide range of sizes, lengths, configurations and materials of construction.
The recommended location for the drive unit is on the discharge end of a screw conveyor which pulls the bulk material to the drive end.
With this arrangement, each screw section is put in tension as the bulk material is conveyed toward the discharge of a screw conveyor, reducing wear and fatigue on the conveyor components.
Easy installation
Optimum functionality
Hassle free performance
Strong winding resistance
Large Torsion Distance
Low Energy Consumption
| Model |
Screw diameter （mm） |
Delivery value (m3/h) |
Power (KW) |
| 100（Type） | 100 | 1.2~2.2 | 0.75~1.6 |
| 160（Type） | 160 | 3.8~7.6 | 1.1~2.8 |
| 200（Type） | 200 | 5.6~11 | 1.5~3.2 |
| 250（Type） | 250 | 11~22 | 1.6~5.3 |
| 315（Type） | 315 | 17~36.4 | 2.1~8.4 |
| 400（Type） | 400 | 31.7~66.1 | 3.1~11 |
| 500（Type） | 500 | 46.5~93.1 | 3.7~15.3 |
| 630（Type） | 630 | 83.1~160 | 4.6~25.9 |
| 800（Type） | 800 | 99.3~223 | 5.7~36 |
| 1000（Type） | 1000 | 139~304 | 7.7~48 |
| 1250（Type） | 1250 | 199~458 | 11~73.3 |
| 200（Type） | 200 | 5.6~11 | 1.5~3.2 |
| 250（Type） | 250 | 11~22 | 1.6~5.3 |
| 300（Type） | 300 | 17~36.4 | 2.1~8.4 |
| 400（Type） | 400 | 31.7~66.1 | 3.1~11 |
| 500 | 500 | 46.5~93.1 | 3.7~15.3 |
| Model | Screw diameter |
Output (cement) t/h |
Rotate speed |
| U 200 | 200 | 9 | 60 |
| U 250 | 250 | 15.6 | 60 |
| U 300 | 300 | 21.2 | 60 |
| U 400 | 400 | 51 | 60 |
| U 500 | 500 | 87.5 | 60 |
| U 600 | 600 | 134.2 | 45 |

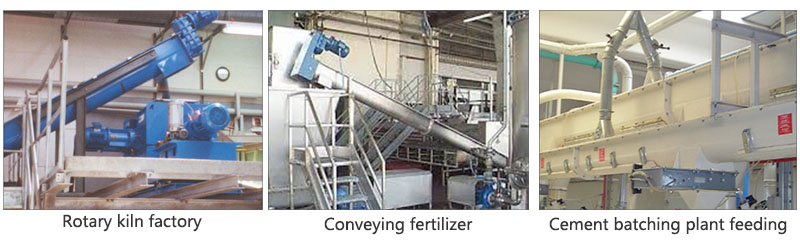

Mine & Metallurgy & Geology Industry
Feed Industry
Grain Industry
Ceramics Industry
Oil Industry
Construction Industry
Didn't you find an industry that suits you? Don't worry:
We also support the conveyor of bulk materials in other industries.
Inclined Screw Conveyor
Screw Pitch: 100-630 mm
Conveying capacity: 1.1-388 m³/h
Small Auger Feeder
Screw Pitch: 100-630 mm
Conveying capacity: 2.2-388 m³/h
Small Screw Conveyor
Rotate speed(r/min): 190-90
Conveying capacity: 1.1-388 m³/h
Paddle Conveyor
Screw Pitch: 100-630 mm
Conveying capacity: 2.2-388 m³/h
