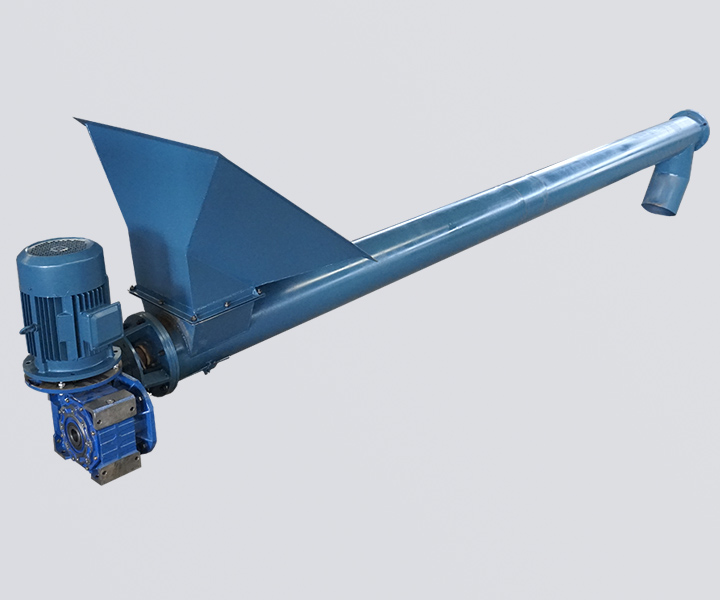

LS screw conveyor

Product Description

LS screw conveyor is a mechanism that uses rotating helical blades (usually in pipes) to move liquid or granular materials. The diameter of the screw is 100mm-1250mm, and there are twelve specifications in total. The maximum length of the driving screw machine can reach 40m (extra-large 30m), and the double-drive screw machine adopts the middle disconnected shaft structure, and the maximum length can reach 80m (extra-large 60m). The delivery volume per hour is 1.2-458m³/h.

The LS screw conveyor is improved from the GX screw conveyor. The main improvement is the suspension bearing structure, which allows materials to pass through more smoothly. It is widely used in mining, chemical, feed, grain and oil, cement plants, commercial concrete and construction industries to transport various A variety of powdery, granular, small block materials and other loose materials, fast speed, no material jams, no arching, smooth discharge.

Types of LS Screw Conveyor

1. Different materials

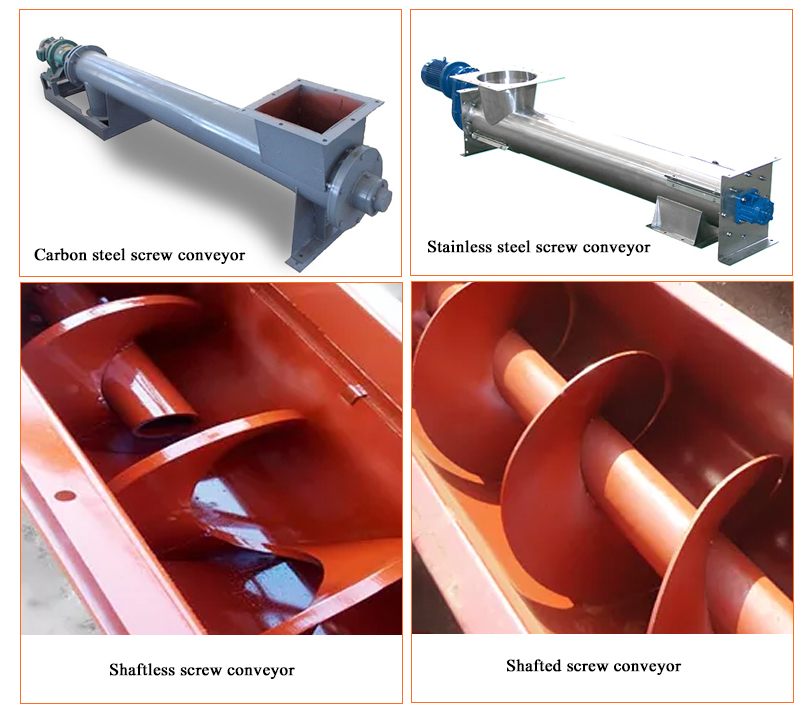

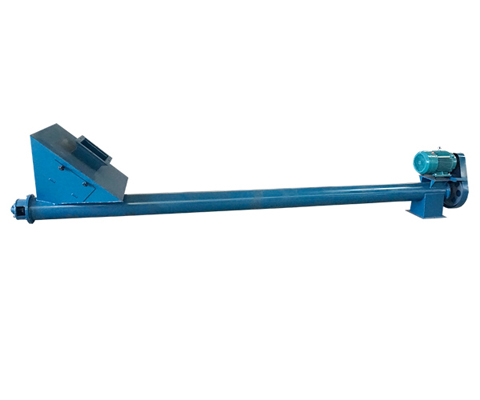

Carbon steel screw conveyor: mainly used in cement, coal, stones and other industries with high wear and no special requirements for sanitation.

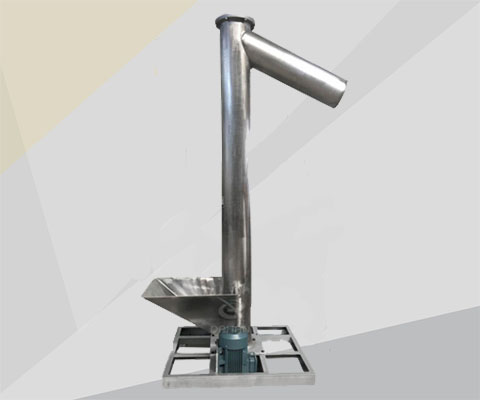

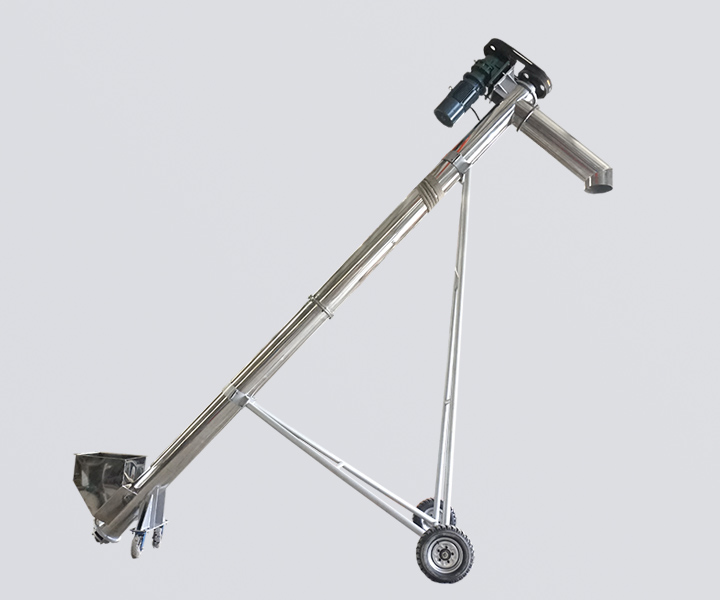

Stainless steel screw conveyor: It is mainly used in food, grain, chemical and other industries that have requirements on the conveying environment. It has a high degree of cleanliness and will not pollute materials.

2. According to the structure:

Shaftless screw conveyor: granular/powder materials, wet/paste materials, semi-fluid/viscous materials, easily entangled/easy to block materials, materials with special hygienic requirements.

Shafted screw conveyor: materials that are not easy to stick, and have certain friction. There are certain requirements for the wear resistance of the screw conveyor.

Working Priciple of LS Screw Conveyor

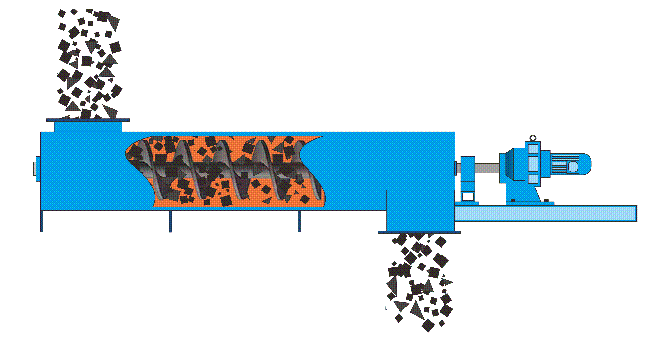

LS screw conveyor is composed of motor, reducer, screw shaft, screw blade and other parts. The screw blade has a large wheelbase, which is not easy to cause blockage when conveying powdery materials. At the same time, the screw blade realizes the material flow by continuously pushing the material. Migration, and can complete the conveying function of materials.

Video

Features

Stable transportation: suitable for small-scale transportation, stable transportation, and can play a good role when the transportation site is limited. The LS screw conveyor can transport 134m of material per hour. The LS screw conveyor has a single-shaft drive screw and a double-shaft drive screw.

Multi-point loading and unloading: It can be loaded and unloaded at any point on its conveying line, and the middle loading and unloading is convenient. Compared with other screw conveyors that cannot load and unload materials at any time, it has obvious advantages and can meet the needs of customers.

Good sealing performance: the head and tail bearings are installed outside the casing, and sliding bearings are used in the middle, and the dust-proof sealing device is designed to avoid dust when the material is conveyed, and will not pollute the environment too much, which is beneficial to the later sanitation cleaning.

Long service life: the suspension shaft and the screw shaft are connected by a slider. When removing the screw, there is no need to move the drive device, and when removing the suspension bearing, there is no need to move the screw. The suspension bearing can be lubricated without removing the cover plate, which saves the replacement time of equipment accessories and is reliable. High durability and long service life.

Technical parameters

Model		Spiral diameter (mm) D	Pitch (mm) S	Speed (r/min) n	Standard volume delivery			Speed (r/min) n	Standard volume delivery			Speed (r/min) n
					Iv（m3/h）				Iv（m3/h）
					φ	φ	φ	φ	φ	φ	φ	φ
					0.45	0.33	0.15	n	0.45	0.33	0.15	n
Small	LS100	100	100	140	3	2.2	1	112	2.4	1.7	0.8	90
	LS125	125	125	125	5.2	3.8	1.7	100	4.1	3	1.4	80
	LS160	160	160	112	9.7	7.1	3.2	90	7.8	5.7	2.6	71
	LS200	200	200	100	16.9	12.4	5.6	80	13.5	9.9	4.5	63
Medium	LS250	250	250	90	29.7	21.8	9.9	71	23.5	17.2	7.8	56
	LS315	315	315	80	52.9	38.8	17.6	63	41.6	30.5	13.9	50
	LS400	400	355	71	85.3	62.5	28.4	56	67.3	49.3	22.4	45
Large	LS500	500	400	63	133.2	97.7	44.4	50	105.8	77.6	35.3	40
	LS630	630	450	50	188.9	138.5	63	40	151.1	110.8	50.4	32
	LS800	800	500	40	270.7	198.5	90.2	32	216.6	158.8	72.2	25
Extra large	LS1000	1000	560	32	379	277.9	126.3	25	296.1	217.1	98.7	20
	LS1250	1250	630	25	520.5	381.7	173.5	20	416.4	305.4	138.8	16

The customer provides the following parameters before purchasing:

Our manufacturer selects and designs according to the parameters you provide. We have 15 years of experience in design and production, and the product quality is good.

1. If you are replacing, you need to provide the flange size (round or square), flange (outer diameter, inner diameter, flange hole distance), and the distance between the inlet and outlet. If it is a new installation, you can ignore these parameters. When you install Just do it to our size.

2. It is necessary to provide some parameters such as installation conditions, material name, material particle size, whether the material has hardness, whether the material has viscosity, material temperature, import and export distance, and the conveying capacity you need. We will help you choose a reasonable model to achieve You need to ensure that you can use it with comfort and peace of mind.

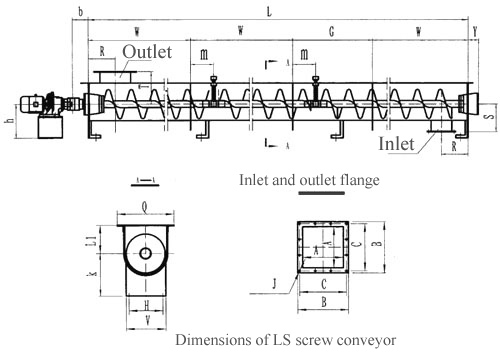

Structure and Dimensions

Model	W	A	B	C	D	N	Q	Y	L	K	R	S	P	O	H	V	J	T	G	L
LS100	2500	100	180	146	10	4	180	190	90	112	180	112	60	178	120	160	14	163	1500 2000 2500	3500- 40000
LS160	2500	160	240	206	10	4	200	190	112	150	200	150	60	270	120	160	14	190
LS200	3000	200	300	256	14	8	225	190	112	180	225	180	60	308	160	200	14	212
LS250	3000	250	350	306	14	8	250	190	140	224	250	224	60	336	200	250	18	240		40000- 80000
LS315	3000	315	425	370	14	8	330	190	214	280	390	250	60	443	300	350	20	340
LS400	3000	400	500	456	14	8	3580	190	224	355	390	280	60	533	320	400	24	384
LS500	3000	500	600	556	14	8	400	190	280	400	400	340	80	662	400	500	24	440	2000 2500 3500	5500- 80000
LS630	3000	630	730	686	14	8	450	190	355	500	450	420	80	763	500	630	24	555
LS800	3000	800	920	868	18	16	550	340	450	630	550	520	80	970	632	800	30	650
LS1000	3000	1000	1120	1068	18	16	650	360	560	710	650	630	80	1190	710	1000	30	760		6000-60000
LS1250	3000	1250	1370	1318	18	16	800	380	710	800	800	760	80	1440	800	1250	30	910

Application

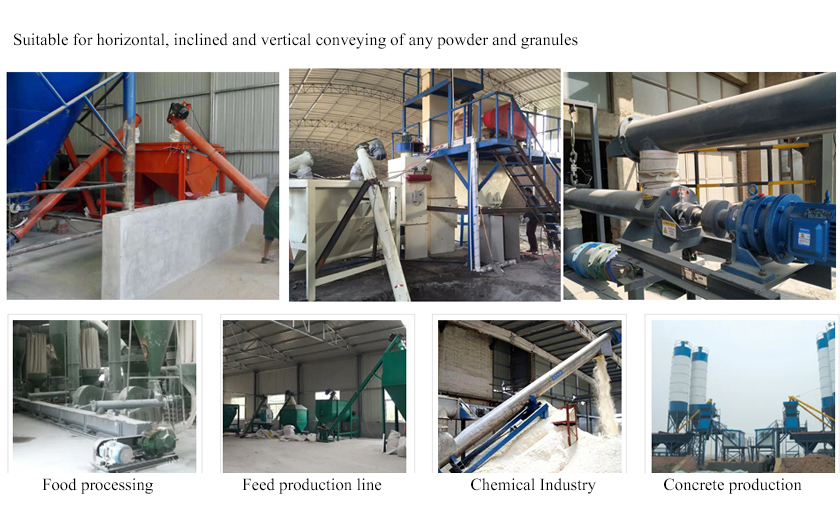

LS screw conveyor can provide various standard solutions for the handling of powdery or granular materials, different models of conveyors or feeders can be used for grain (wheat bran, flour, corn, rice husk, wheat), chemical industry (fertilizer, plastic granules, washing powder), coal production (coal powder, dedusting ash), concrete production (fly ash, filler dust, silica fume), premixed building materials (dry plaster, sand, cement, additives), glass processing ( calcium carbonate, soda, sand) etc.), foundries (sand, bentonite) etc.

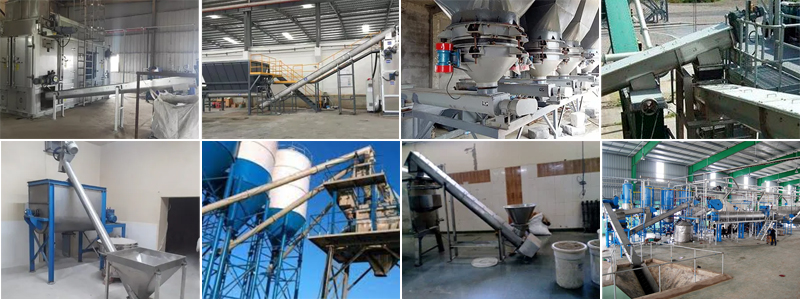

Customer Case

Manufacturer display

Xinxiang Dahan Tubular Screw Conveyor Manufacturer specializes in screw conveyors. It has 15 years of production experience, complete models, low price, and 1-year warranty. The material of the shell blades of this product is carbon steel and stainless steel. According to the particle size, conveying volume and conveying distance of conveying materials, reasonable selection and design can be made to ensure no material jamming, no arching, and smooth discharge. Free parameters and drawings are provided.

[Quality Assurance]: 30-day quality problem refund, 180-day quality problem replacement, 1-year warranty, lifetime maintenance.

[Service Guarantee]: 30 minutes to respond to demand, 24 hours on-site inspection, 72 hours free maintenance.

[Delivery Guarantee]: Regular models will be shipped within 24 hours, and customized models will be shipped within 7 days, which reduces the delivery cycle and saves user costs.
