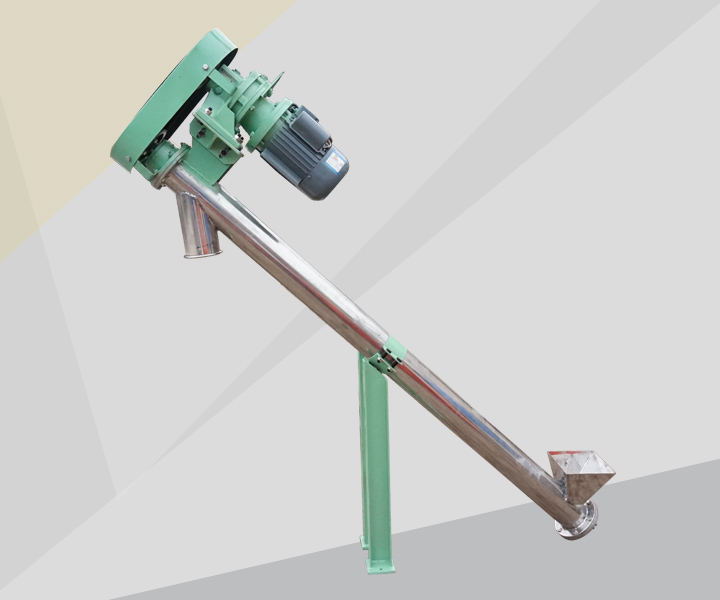

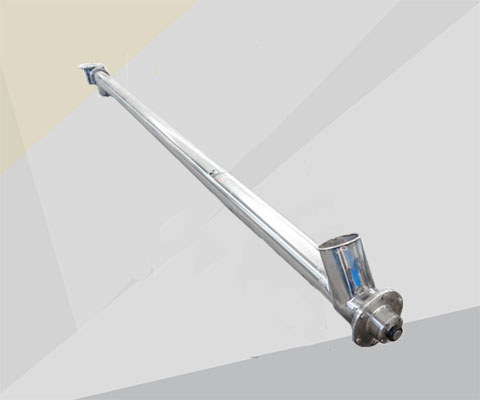

Auger Conveyor

Auger conveyor offer efficiency and versatility, conveying bulk materials ranging from large pellets to sub-micron powders—both free-flowing and non-free-flowing—with no separation of blended products.

Installation slope:0~60°

Conveying capacity: 1.1-388 m³/h

Material:Stainless Steel

Applied Material

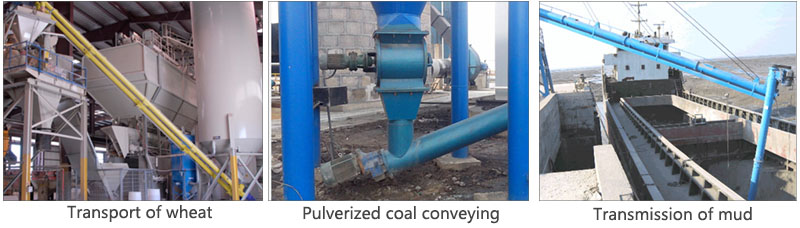

Powdery, granular, and small bulk materials,etc.

Product Description

All auger conveyors are available on caster-mounted frames with conveyor support masts for in-plant mobility, reducing the need for multiple stationary units.

Both mobile and stationary units are readily customized using interchangeable screws, conveyor tubes, drive motors, hoppers, flow-promotion devices, sensors, controllers, and other components to satisfy the most diverse and demanding end-use requirements.

Also a ideal equipment for conveyorfor dry materials and semi-fluid bulk materials.

Features

Torsion can be 4000N/m

60 m single conveyor

1.5 times of the traditional axle screw conveyor with the same diameter

100℃ can be reached

Large conveying capacity

Environmental protection

specifications		Spiral diameter（mm） D	pitch（mm） S	speed（r/min） n	Standard volume throughput			speed（r/min）	Standard volume throughput			speed（r/min）
					Iv（m3/h）			speed（r/min）	Iv（m3/h）			speed（r/min）
					φ	φ	φ	φ	φ	φ	φ	φ
					0.45	0.33	0.15	n	0.45	0.33	0.15	n
small	LS100	100	100	140	3.0	2.2	1.0	112	2.4	1.7	0.8	90
	LS125	125	125	125	5.2	3.8	1.7	100	4.1	3.0	1.4	80
	LS160	160	160	112	9.7	7.1	3.2	90	7.8	5.7	2.6	71
	LS200	200	200	100	16.9	12.4	5.6	80	13.5	9.9	4.5	63
medium	LS250	250	250	90	29.7	21.8	9.9	71	23.5	17.2	7.8	56
	LS315	315	315	80	52.9	38.8	17.6	63	41.6	30.5	13.9	50
	LS400	400	355	71	85.3	62.5	28.4	56	67.3	49.3	22.4	45
large	LS500	500	400	63	133.2	97.7	44.4	50	105.8	77.6	35.3	40
	LS630	630	450	50	188.9	138.5	63.0	40	151.1	110.8	50.4	32
	LS800	800	500	40	270.7	198.5	90.2	32	216.6	158.8	72.2	25
oversize	LS1000	1000	560	32	379.0	277.9	126.3	25	296.1	217.1	98.7	20
oversize	LS1250	1250	630	25	520.5	381.7	173.5	20	416.4	305.4	138.8	16
